MOTOR, Window Regulator: Installation: Installation

Fig 1: Window Motor

Courtesy of CHRYSLER LLC

NOTE:

The power window motor may need to actuated momentarily to line up the gear in the drive assembly with the regulator.

Connect the power window motor electrical connector to the motor electrical connector receptacle (3).
Position the power window motor and gear assembly (2) on the carrier plate (1) aligning the drive gear with the regulator.
If necessary, temporarily connect the window switch assembly and battery to actuate the motor.
Install and tighten the three fasteners (4) that secure the power window motor and gear assembly to the carrier plate.

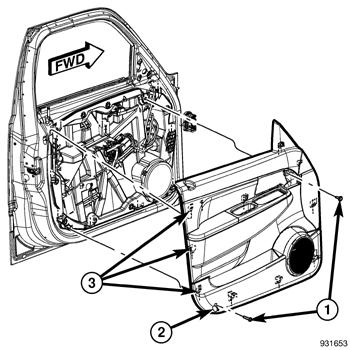

Fig 2: Identifying Screws, Cap Screw Cover & Mounting Attachments
Courtesy of CHRYSLER LLC
Reinstall the door interior trim panel (2). Refer to PANEL, Door Trim, Installation or PANEL, Rear Door Trim, Installation for the appropriate procedure.
Connect the negative battery cable.
Perform the Clear/Relearn procedure. Refer to Standard Procedure .
