SENSOR, Boost Pressure: Installation: Installation

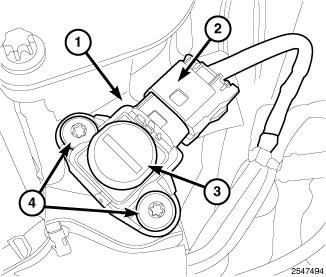

Fig 1: Identifying Mixing Chamber, Harness Connector, Boost Pressure Sendor & Bolts

Courtesy of CHRYSLER LLC

1. Install the boost pressure sensor (3) into mixing chamber (1). Tighten bolts (4) to 8 N.m (71 in. lbs.).
2. Connect the boost pressure sensor (3) harness connector (2).
3. Install the engine cover.
4. Connect the negative battery cable.
