SENSOR, Camshaft Position: Installation: Installation

Fig 1: Identifying Cam Position Sensor & Retaining Bolt

Courtesy of CHRYSLER LLC

1. Install the camshaft position sensor (1). Tighten bolt (2) to 6 N.m (53 in. lbs.).

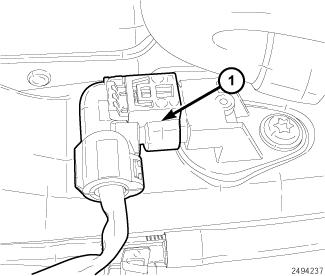

   Fig 2: Identifying Camshaft Position Sensor Harness Connector

   Courtesy of CHRYSLER LLC
2. Connect the cam position sensor harness connector (1).
3. Install the engine cover.
4. Connect the negative battery cable.
