BEARING and RACE, Input: Installation: Installation

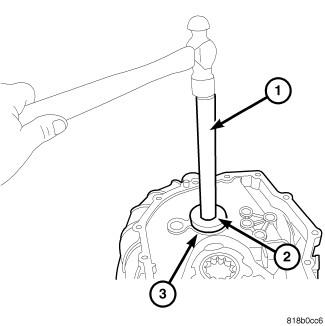

Fig 1: Install Input Bearing Bellhousing

Courtesy of CHRYSLER LLC

1. Apply coating of Loctite® sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.
2. Using Installer (special tool #5064, Installer, Bearing) (2) and Handle (special tool #C-4171, Driver Handle, Universal) (1) install input bearing (3) into bore until it is fully seated.
