Liftgate Panel

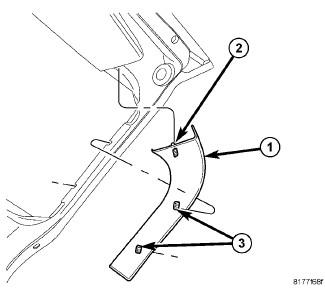

Fig 1: Liftgate Upper Side Trim

Courtesy of CHRYSLER LLC

NOTE:

Caliber shown in illustration, Compass similar.

Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the clip fasteners (2 and 3) and remove the side trim panels (1).
