Liftgate Header Panel

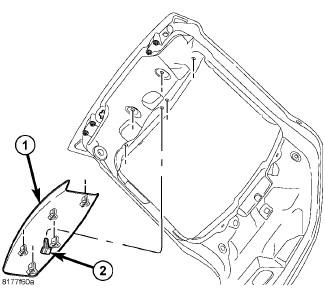

Fig 1: Center Liftgate Upper Trim

Courtesy of CHRYSLER LLC

NOTE:

Caliber shown in illustration, Compass and Patriot similar.

Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the clip fasteners (2) and remove the upper trim (1).
