SEAL, Axle Drive Shaft, Left: Installation: Installation

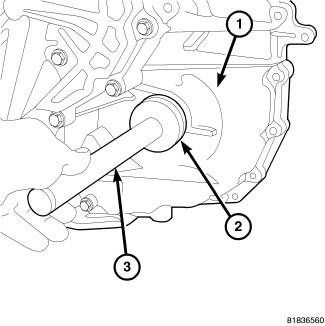

Fig 1: Diff Seal Left Side

Courtesy of CHRYSLER LLC

1. Install the left side differential oil seal using Installer (special tool #9871, Installer, Seal) (2) and Handle (special tool #C-4171, Driver Handle, Universal) (3).
2. Install halfshaft. Refer to Installation or Installation or Installation .
3. Road test vehicle and inspect for leaks.
