VALVE, Manifold Flow: Removal: Removal

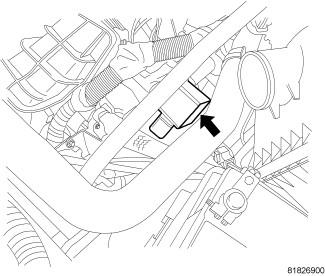

Fig 1: Valve Location
GC0084340Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Remove air tube.
    Fig 2: Electrical Connector
    GC0084341Courtesy of CHRYSLER LLC
  3. Disconnect electrical connector (2).
  4. Remove mounting bolts (1).

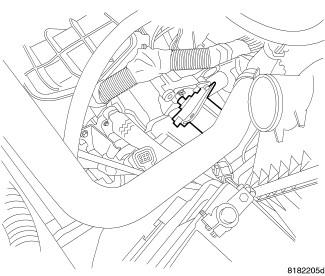

    Fig 3: Valve Location
    GC0084342Courtesy of CHRYSLER LLC
  5. Remove valve.
