RAIL, Fuel: Installation: Installation

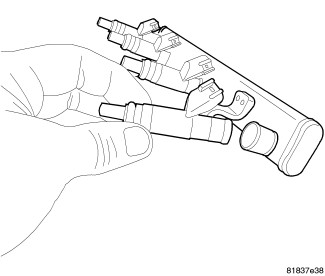

Fig 1: Fuel Injector And Rail

Courtesy of CHRYSLER LLC

Apply a light coating of clean engine oil to the O-ring on the nozzle end of each injector.
Install the fuel injectors to the fuel rail.
Install injector into cup of fuel rail.
Install retaining clip and check to ensure fuel injector is properly seated.

Fig 2: Fuel Rail
Courtesy of CHRYSLER LLC

Fuel rail assembly.

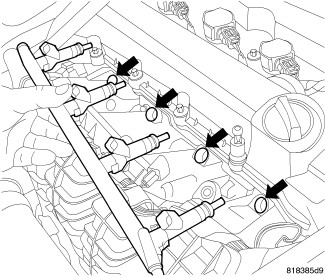

Fig 3: Rail Removal/Install
Courtesy of CHRYSLER LLC
Insert fuel injector nozzles into openings in intake manifold. Seat the injectors in place.

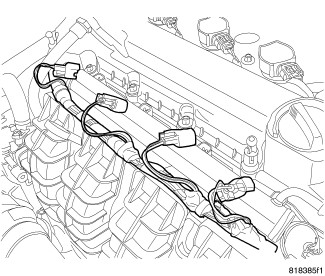

Fig 4: Electrical Harness Removed
Courtesy of CHRYSLER LLC
Install the 2 bolts to the fuel rail. Tighten fuel rail bolts to 27 N.m (20 ft. lbs.).

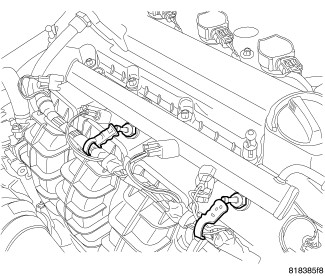

Fig 5: Harness Clips
Courtesy of CHRYSLER LLC
Install the wiring harness to the fuel rail.

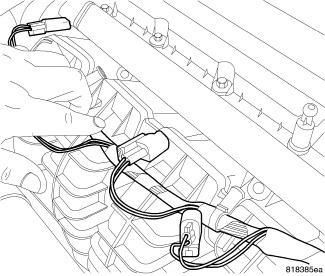

Fig 6: Electrical Connectors
Courtesy of CHRYSLER LLC
Connect and lock the electrical connectors to the fuel injectors.

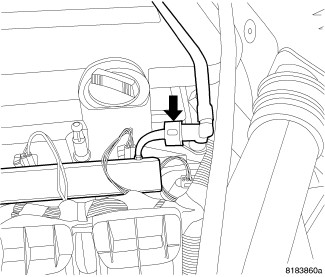

Fig 7: Fuel Line AT Rail
Courtesy of CHRYSLER LLC
Connect the fuel line to the fuel rail. Refer to FITTING, Quick Connect .
Connect the negative battery cable.
Use the Scan Tool Fuel System Test to pressurize the fuel system. Check for leaks.
