T355 Manual Transmission (Service Information): Disassembly: Disassembly

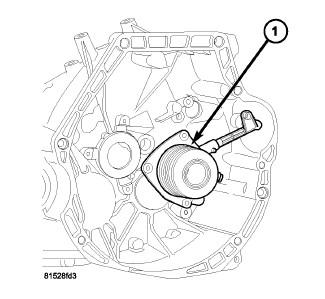

Fig 1: Removing/Installing Concentric Slave Cylinder

Courtesy of CHRYSLER LLC

Remove bolts from slave cylinder-to-clutch bellhousing and remove slave cylinder (1) from transaxle.

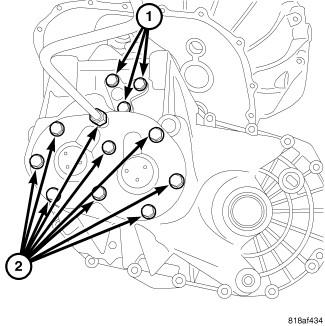

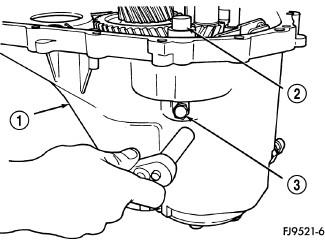

Fig 2: Case Bolts
Courtesy of CHRYSLER LLC

1 - CASE BOLTS

The T355 transaxle internal components can be serviced only by separating the gear case from the bellhousing case.

CAUTION:
The transaxle output shaft is serviced as a unit. No disassembly and reassembly is possible. Damage to the transaxle may result.
Place transaxle on bench.
Remove transaxle case half bolts (1).

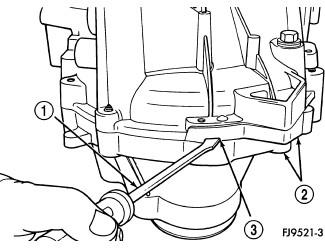

Fig 3: Separate Case Halves
Courtesy of CHRYSLER LLC

1 - PRY TOOL

2 - CASE HALVES

3 - PRY SLOT

Place two screwdrivers (1) into the slots (3) provided in the case halves (2) near the dowels. Refer to Fig 3. Separate the case halves.

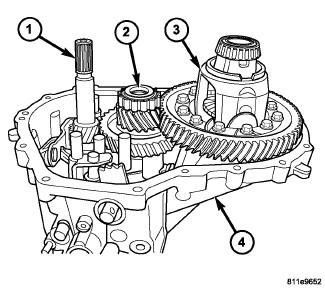

Fig 4: Bellhousing Case Half Removed

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - OUTPUT SHAFT

3 - DIFFERENTIAL ASSEMBLY

4 - GEARTRAIN HOUSING

Remove bellhousing half from gear case half (4). Refer to Fig 4.

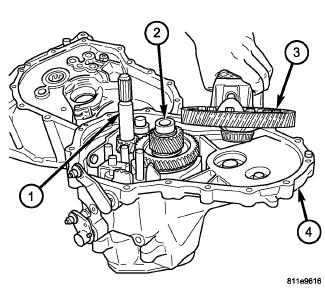

Fig 5: Removing/Installing Differential

Courtesy of CHRYSLER LLC

1 - INPUT SHAFT

2 - OUTPUT SHAFT

3 - DIFFERENTIAL ASSEMBLY

4 - GEARTRAIN HOUSING

Remove differential assembly (3) from housing (4). Refer to Fig 5.

Fig 6: Reverse Idler Shaft

Courtesy of CHRYSLER LLC

1 - CASE

2 - REVERSE IDLER SHAFT

3 - REVERSE IDLER SHAFT BOLT

Remove reverse idler shaft bolt (3).

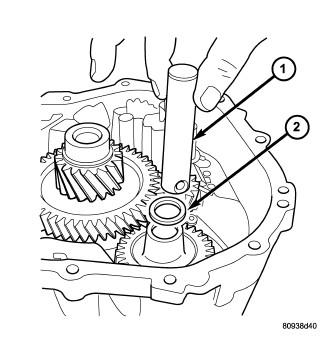

Fig 7: Removing/Installing Reverse Idler Shaft
Courtesy of CHRYSLER LLC

1 - REVERSE IDLER SHAFT

2 - SPACER
Remove reverse idler shaft (1). Refer to Fig 7.

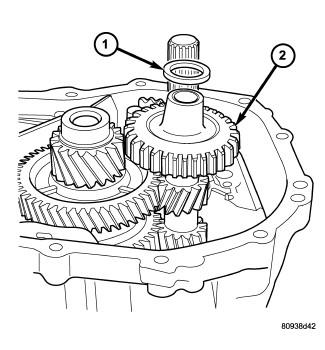

Fig 8: Reverse Idler Gear & Spacer
Courtesy of CHRYSLER LLC

1 - SPACER

2 - REVERSE IDLER GEAR
Remove reverse idler gear (2) and spacer (1). Refer to Fig 8.

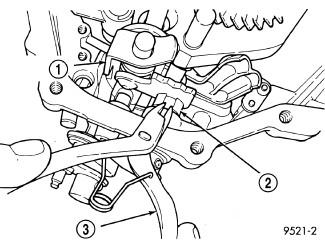

Fig 9: Linkage Tie Bar Clips
Courtesy of CHRYSLER LLC
Remove the clips (1) at the linkage tie bar (2).

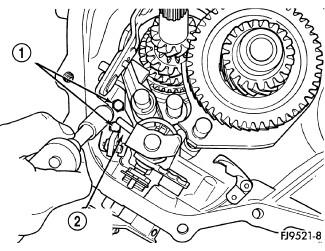

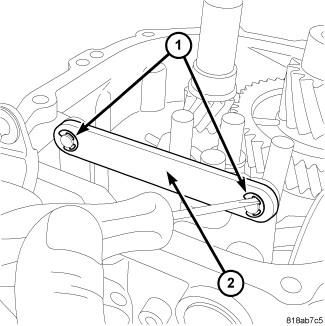

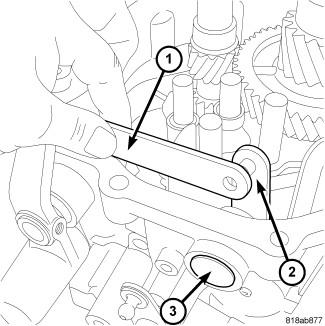

Fig 10: Linkage Tie Bar
Courtesy of CHRYSLER LLC
Remove the linkage tie bar (1).
Remove the plug (3) at the selector shaft (2).

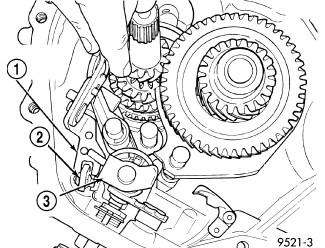

Fig 11: Screws Retaining Reverse Fork Bracket
Courtesy of CHRYSLER LLC

1 - SCREWS (2)

2 - REVERSE FORK BRACKET

Remove two screws (1) retaining reverse fork bracket (2). Refer to Fig 11.

Fig 12: Remove Reverse Fork Bracket

Courtesy of CHRYSLER LLC

1 - REVERSE FORK BRACKET

2 - REVERSE CAM BLOCKOUT

3 - SHIFT BLOCKER ASSEMBLY

Remove reverse fork bracket (1) and reverse cam block-out assembly (2). Refer to Fig 12.

Fig 13: Remove Selector Shaft Spacer

Courtesy of CHRYSLER LLC

1 - SHIFT BLOCKER ASSEMBLY

2 - SELECTOR SHAFT SPACER (PLASTIC)

3 - SNAP RING PLIERS

Using snap-ring pliers (3), remove link shaft spacer (2). Refer to Fig 13.

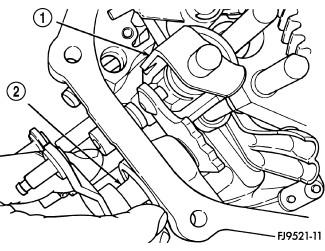

Fig 14: Selector Shaft
Courtesy of CHRYSLER LLC

1 - SHIFT ASSEMBLY

2 - SELECTOR SHAFT
Pull the link shaft shift pin out of the slot in the blocker assembly. Turn selector shaft (2) up and out of the way. Refer to Fig 14.

Fig 15: End Cover And Shaft Bolts
Courtesy of CHRYSLER LLC
Remove transaxle end cover (2) and rear detent assembly bolts (1).

Fig 16: Backup Lamp Switch
Courtesy of CHRYSLER LLC
Remove the backup lamp switch (2).

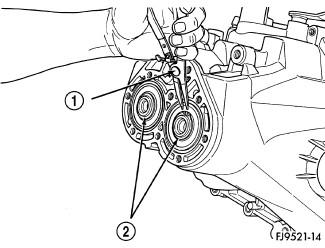

Fig 17: Snap Rings Retaining Bearings
Courtesy of CHRYSLER LLC

1 - SNAP RING PLIERS

2 - SNAP RINGS
Remove two snap rings (2) retaining the output shaft and the input shaft to the bearings. Refer to Fig 17.

Fig 18: Bench Fixture T355
Courtesy of CHRYSLER LLC
The Bench Fixture (special tool #6785, Assembly, Pallet) (4) and adaptors (special tool #9761-1, Pad, Shift Rail Support) (1), (special tool #9761-2, Spacer) (3), (special tool #9761-3, Spacer) (2), (special tool #9761-6, Stand Off) (5) and (special tool #9761-7, Stand Off) (6) will be used to remove input and output shafts from the case.

Fig 19: Trans On Fixture T355
Courtesy of CHRYSLER LLC
Turn transaxle over. Install transaxle (1) onto Bench Fixture (special tool #6785, Assembly, Pallet) (2). Verify shim spacers and adaptors are in position on Bench Fixture (special tool #6785, Assembly, Pallet). Install transaxle into shop press.

Fig 20: Bearing Fixture
Courtesy of CHRYSLER LLC

1 - BEARING FIXTURE

2 - TRANSAXLE CASE

Install Bearing Remover (special tool #6768, Remover, Bearings) (1) onto transaxle end bearings. Verify tool is properly aligned to input and output shafts.

CAUTION:

The oil dams in the input and output shafts can be damaged while pressing on the shafts if the bearing fixture is not used properly.

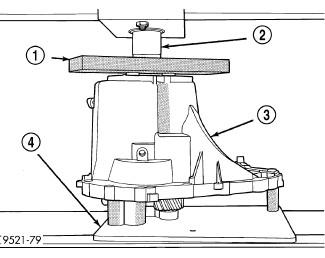

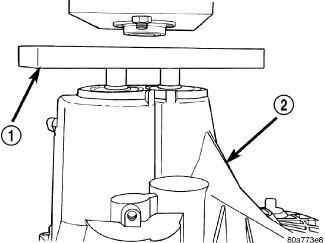

Fig 21: Pressing Gears Out Of Case

Courtesy of CHRYSLER LLC

1 - BEARING FIXTURE

2 - PRESS RAM

3 - TRANSAXLE CASE

4 - BENCH FIXTURE

Install transaxle gear case (3) into shop press. Press (2) output and input shaft assemblies out of case.
Remove transaxle from press.

Fig 22: Trans On Fixture T355
Courtesy of CHRYSLER LLC
Carefully remove transaxle case (1) from the shaft assemblies and Bench Fixture (special tool #6785, Assembly, Pallet) (2).

Fig 23: Oil Feed Trough
Courtesy of CHRYSLER LLC

1 - OIL FEED TROUGH
Be sure the oil-feed trough (1) to the end bearings is not damaged.

Fig 24: Shift Shaft Assy
Courtesy of CHRYSLER LLC
Remove the reverse brake friction cone (1) from the input shaft assembly.
Remove the blocking ring (2) from the input shaft assembly.

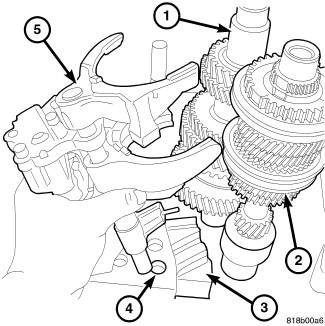

Fig 25: Shift Rail Assy
Courtesy of CHRYSLER LLC
Remove the shift blocker assembly, the reverse shift fork (5) and the detent assembly from the bench fixture (4).
Remove input (2) and output shaft (1) assemblies from Bench Fixture (special tool #6785, Assembly, Pallet).

CAUTION:

The output shaft assembly is serviced as an assembly. Do not try to repair any component on the output shaft. If the 1-2 synchronizer or gear fails, it is necessary to replace the complete output shaft assembly.
