Rear Solenoid 1/2

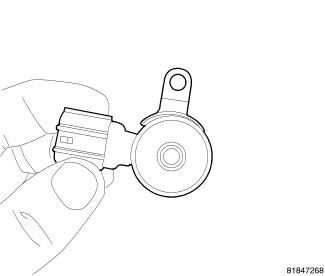

Fig 1: Solenoid Mounting Tab 1/2
GC0082441Courtesy of CHRYSLER LLC
  1. Rear variable valve timing solenoid. Note mounting tab location is different between front and rear solenoids.
  2. Install solenoid into cylinder head.
  3. Install mounting bolt and tighten to 12 N.m (9 ft. lbs.).
  4. Connect electrical connector to Variable valve timing solenoid.

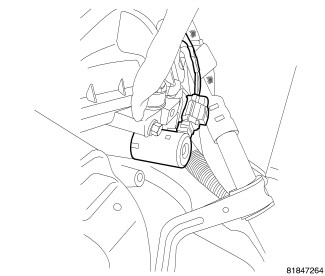

    Fig 2: Solenoid Location 1/2
    GC0082440Courtesy of CHRYSLER LLC
  5. Connect negative battery cable.
  6. Install engine cover.
