Front Solenoid 1/1

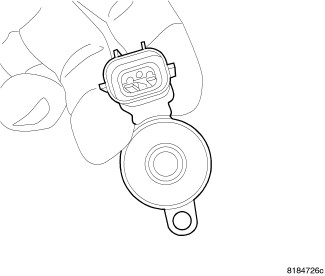

Fig 1: Solenoid Mounting Tab 1/1
GC0082439Courtesy of CHRYSLER LLC
  1. Solenoid for front location 1/1. Note mounting tab location is different between front and rear solenoids.

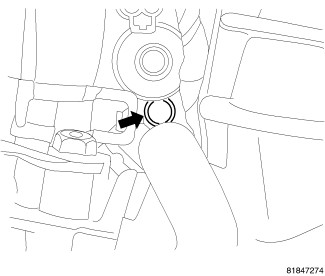

    Fig 2: Solenoid Mounting Bolt
    GC0082438Courtesy of CHRYSLER LLC
  2. Install solenoid into cylinder head.
  3. Install mounting bolt and tighten to 12 N.m (9 ft. lbs.).

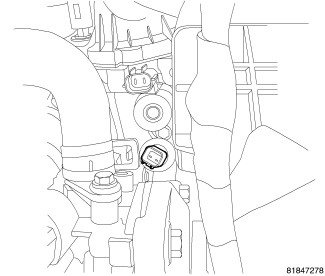

    Fig 3: Oil Pressure Sensor
    GC0082437Courtesy of CHRYSLER LLC
  4. Install oil pressure sensor.
  5. Connect electrical connector to oil pressure sensor.
  6. Connect electrical connector to Variable valve timing solenoid.
  7. Connect negative battery cable.
  8. Install engine cover.
