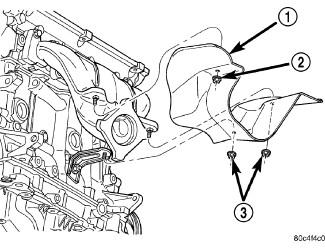

SHIELD, Heat: Description: Description
| 1 - HEAT SHIELD |
| 2 - NUT |
| 3 - NUT |
Heat shields (1), are needed to protect both the vehicle and the environment from the high temperatures developed in the vicinity of the catalytic converter.
CAUTION:
Avoid application of rust prevention compounds or undercoating materials to exhaust system floor pan heat shield. Light over-spray near the edges is permitted. Application of coating will greatly reduce the efficiency of the heat shields resulting in excessive floor pan temperatures and objectionable fumes.
