Charging System (Service Information): Generator: Installation: Installation

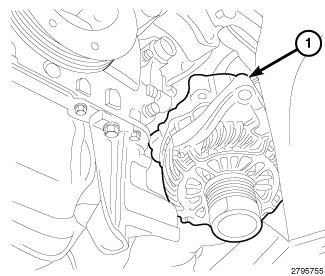

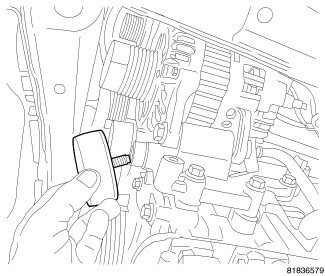

Fig 1: Generator Removal

Courtesy of CHRYSLER LLC

Install the generator (1).

Fig 2: Rotate Generator
Courtesy of CHRYSLER LLC
Rotate generator and set in place.

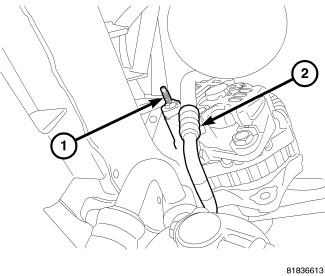

Fig 3: Battery Stud Location
Courtesy of CHRYSLER LLC

Make sure battery terminal (1) is in front of A/C line (2).

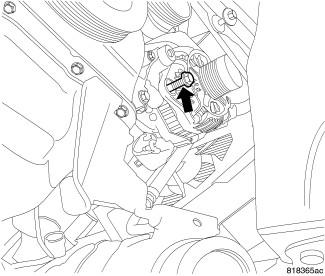

Fig 4: Upper Mounting Bolt
Courtesy of CHRYSLER LLC
Install the upper mounting bolt.
Tighten bolts to GAS 54 N.m (40 ft. lbs.) DIESEL 26 N.m (19 ft. lbs.).

Fig 5: Battery Cable Connection
Courtesy of CHRYSLER LLC
Install the B+ terminal nut and wire and.
Tighten to 10 N.m (88.5 in. lbs.)

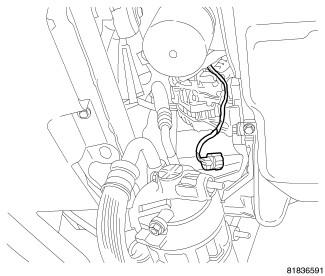

Fig 6: Field Connection
Courtesy of CHRYSLER LLC
Plug in the field circuit to the generator.

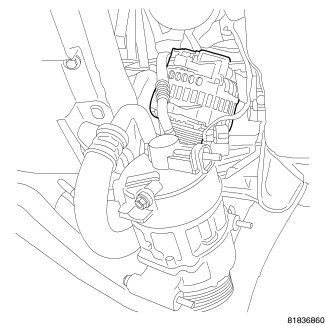

Fig 7: Lower Mounting Bolt
Courtesy of CHRYSLER LLC
Install the lower mounting bolt.
Tighten bolts to GAS 54 N.m (40 ft. lbs.) DIESEL 26 N.m (19 ft. lbs.).

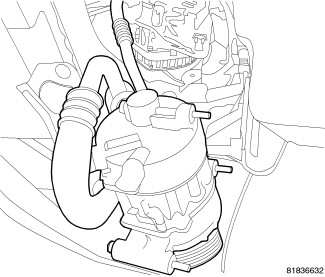

Fig 8: A/C Compressor Relocation
Courtesy of CHRYSLER LLC
Install the A/C compressor. Refer to COMPRESSOR, A/C, Installation .

Fig 9: Idler Pulley Removal/Install
Courtesy of CHRYSLER LLC
Install the accessory drive idler pulley.
Tighten bolt to 48 N.m (35 ft. lbs.).
Position back the serpentine belt. Refer to BELT, Serpentine, Installation .
Install the accessory drive splash shield.

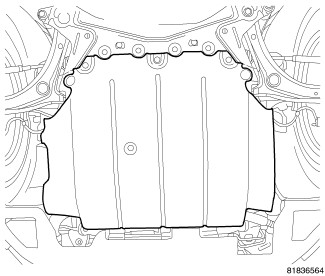

Fig 10: Lower Air Dam/Belly Pan
Courtesy of CHRYSLER LLC
Install underbody air dam.
Install the right front wheel.
Recharge the A/C system. Refer to Plumbing, Standard Procedure .
Connect the negative battery cable.

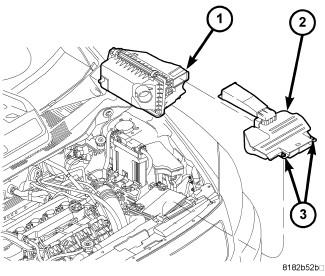

Fig 11: Air Cleaner Box And Snorkel
Courtesy of CHRYSLER LLC
Install the air cleaner fresh air duct (2) and rotate the two retaining clips (3) to install.
