CHECK VALVE, Washer: Installation: Installation

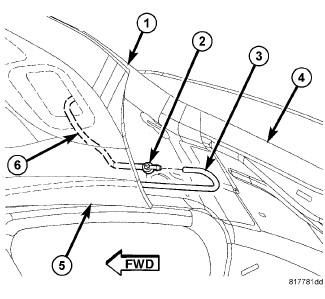

Fig 1: Rear Check Valve Replacement

Courtesy of CHRYSLER LLC

1. Position the rear check valve (2) between the upper liftgate opening header (1) and the headliner (5). Be certain that the raised arrow that indicates the flow direction on the center section of the valve is pointed toward the liftgate washer supply hose (6).
2. Reconnect the liftgate washer supply hose and the headliner washer supply hose (3) to the barbed nipples of the valve.
3. Reinstall the trim onto the right upper D-pillar (4). Refer to PANEL, D-Pillar Trim, Installation .
4. Reconnect the battery negative cable.
