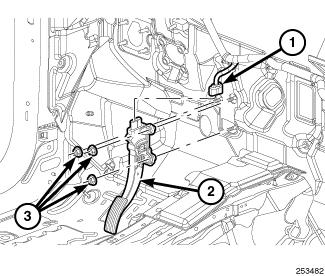

PEDAL, Accelerator: Removal: Removal
Courtesy of CHRYSLER LLC
- Disconnect and isolate negative battery cable at battery.
- Disconnect the electrical connector from accelerator pedal.
- Remove mounting nuts and remove accelerator pedal from the mounting studs.
