Module, Intrusion: Installation

WARNING: This page is about a different car, the 2017 Jeep Patriot and 2017 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

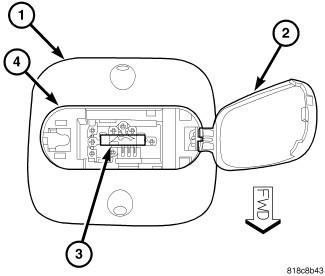

GC0084035Courtesy of CHRYSLER GROUP, LLC
  1. Position the Intrusion Transceiver Module (ITM) (1) to the mounting hole in the headliner.
  2. Connect the wire harness connectors to the ITM and rear dome lamp connector receptacles on the back of the ITM.
  3. Insert the fixed retainer on the left side of the ITM housing up into the left side of the mounting hole in the headliner.
  4. Slide the notched end (4) of the housing into the mounting hole far enough to engage the rear dome lamp lens hinge/retainer into the opposite side of the hole in the headliner.
  5. Gently and evenly press the lens hinge/retainer end of the lamp into the mounting hole until the bezel of the ITM housing is flush with the headliner.
  6. Swing the notched end of the lamp lens (2) into position against the lamp housing, then press upward on the lens firmly and evenly until it snaps into the housing.
  7. Connect the negative battery cable.
