Module, Hands Free (HFM): Installation
WARNING: This page is about a different car, the 2017 Jeep Patriot and 2017 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

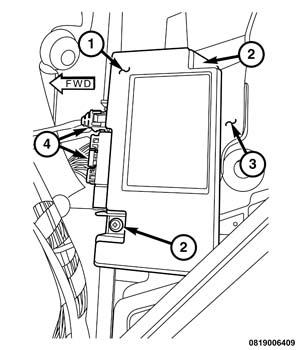

- Insert the Hands Free Module (HFM) (1) through the outboard side of the instrument panel glove box opening.
- Position the HFM close enough to the dash panel to access and connect the wire harness connectors (4) to the HFM connector receptacles.
- Position the HFM to the inboard side of the instrument panel support structure end bracket (3).
- Install and tighten the two screws (2) that secure the HFM to the end bracket. Tighten the screws securely.
- Install the glove box into the instrument panel. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
- Connect the negative battery cable.
