Module, Transmission Control (TCM): Removal

WARNING: This page is about a different car, the 2017 Jeep Patriot and 2017 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

LHD model shown in illustrations. RHD model TCM located in similar area on Left side of interior.

Disconnect negative battery cable.

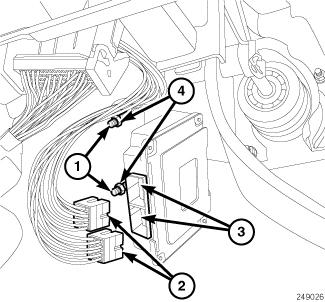

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The TCM is located on the bulkhead near the left kick panel.
If equipped, remove silencer pad on left side.

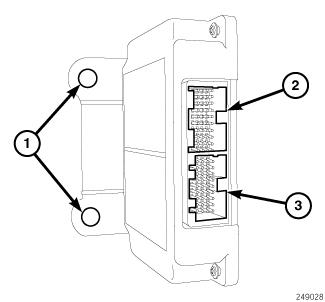

Courtesy of CHRYSLER GROUP, LLC
Disconnect the two electrical connectors (2) at the TCM (3).
Position body harness to the side to gain access to the TCM mounting studs.
Remove the two nuts that hold the TCM to the bulkhead.

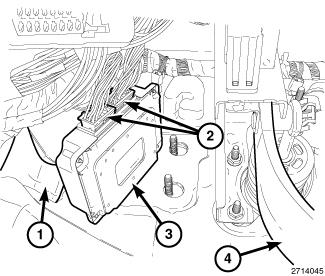

Courtesy of CHRYSLER GROUP, LLC
Slide the TCM off the mounting studs (1) and remove from the vehicle.
