Module, Compass: Removal

WARNING: This page is about a different car, the 2017 Jeep Patriot and 2017 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

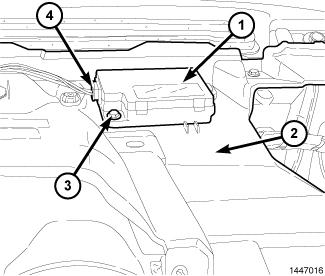

GC0098553Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel top cover. Refer to COVER, INSTRUMENT PANEL, REMOVAL .
  3. Remove the screws (3) securing the Remote Compass Module (RCM) (1) to the instrument panel (2).
  4. Disconnect the electrical connector (4) and remove the RCM from the vehicle.
