Module, Compass: Description
WARNING: This page is about a different car, the 2017 Jeep Patriot and 2017 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

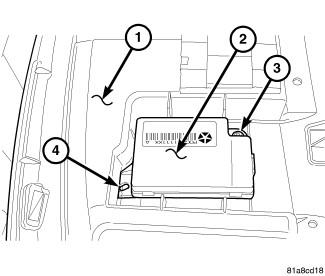

On vehicles Not equipped with a Navigational (NAV) Radio, the Remote Compass Module (RCM) (2) is a separate stand alone module mounted to the top of the instrument panel (1). Vehicles equipped with a Navigational (NAV) Radio, the compass feature is an integral part of the NAV system and does not require calibration or adjustment, and is only serviced as an assembly with the radio. For more information on the NAV Radio. Refer to DESCRIPTION .
For information on diagnosis and testing or programming of the RCM, refer to MODULE, COMPASS, DIAGNOSIS AND TESTING or MODULE, COMPASS, STANDARD PROCEDURE .
