C211C-Ignition Run/Start Input Circuit Low: Notes

WARNING: This page is about a different variant/trim than selected.

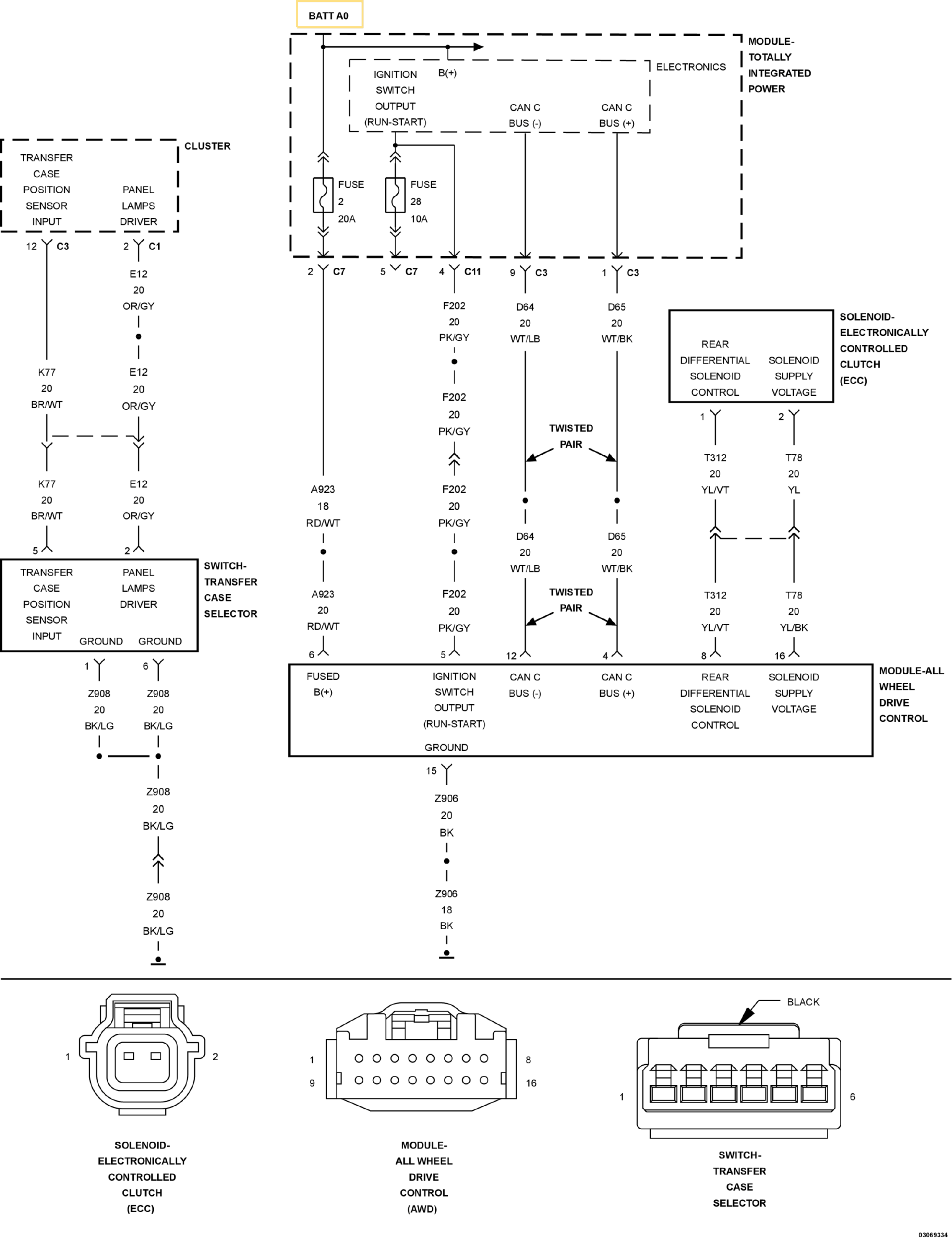

Fig 1: All Wheel Drive Control Module Circuit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
