Engine Cover

WARNING: This page is about a different variant/trim than selected.

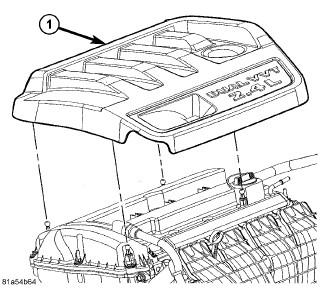

Fig 1: Engine Cover - 2.4L
GC0084921Courtesy of CHRYSLER LLC
  1. Position engine cover (1) over mounting studs.
  2. Seat the cover on the rear studs by pushing downwards.
  3. Push downward on the front of the cover to seat the front studs.
