Engine Block: FLEXPLATE: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

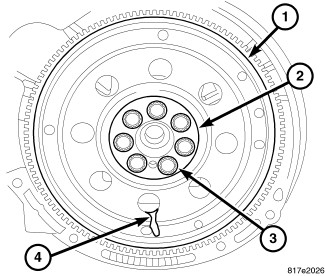

Fig 1: Flex Plate
GC0098637Courtesy of CHRYSLER LLC
  1. Remove transmission. Refer to Removal . Refer to Removal .
  2. Remove flex plate bolts (3) and discard.
  3. Remove washer (2).
  4. Remove flex plate (1).
