Standard Procedure - Drain And Fill

WARNING: This page is about a different variant/trim than selected.

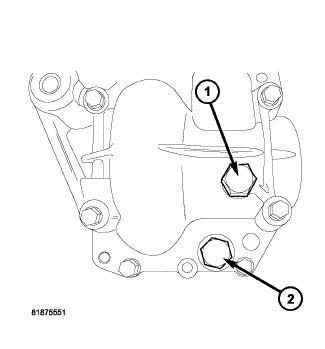

Fig 1: Drain And Fill Plugs
GC0098399Courtesy of CHRYSLER LLC
  1. Remove fill plug (1) and drain plug (2). Drain fluid.
  2. Install drain plug (2) and tighten to 32 N.m (24 ft.lb.).
  3. Fill with MOPAR® MS (special tool #9020, Insert, Crankshaft) SAE 80W90 Gear Lube to bottom of fill plug.
  4. Install fill plug (1) and tighten to 32 N.m (24 ft.lb.).
