VALVE, Exhaust Gas Recirculation (EGR) Airflow Control: Installation: Installation

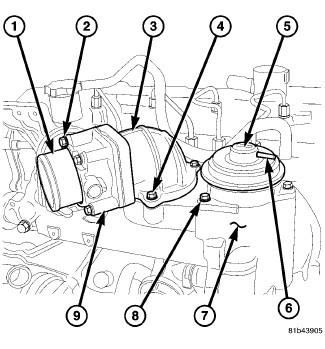

Fig 1: EGR VALVE/EGR AIRFLOW CONTROL VALVE

Courtesy of CHRYSLER LLC

1. Clean the gasket surface areas.
2. Using a new gasket, install EGR air control valve (9). Tighten bolts (2) to 13 N.m (115 in. lbs.).

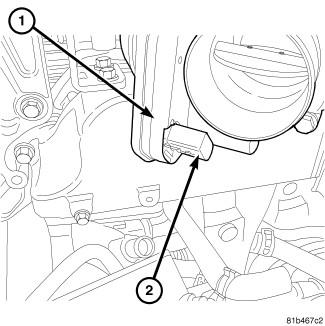

   Fig 2: ELECTRICAL CONNECTOR - EGR AIR VALVE

   Courtesy of CHRYSLER LLC
3. Connect air control valve harness (2).

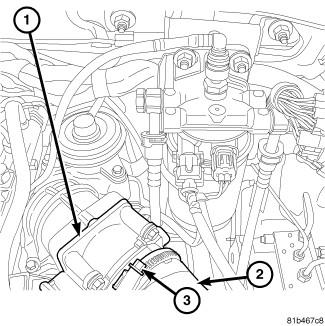

   Fig 3: AIR TUBE - EGR AIR VALVE

   Courtesy of CHRYSLER LLC
4. Connect air tube (2) to air control valve (1) and securely tighten clamp (3).
5. Connect the negative battery cable.
