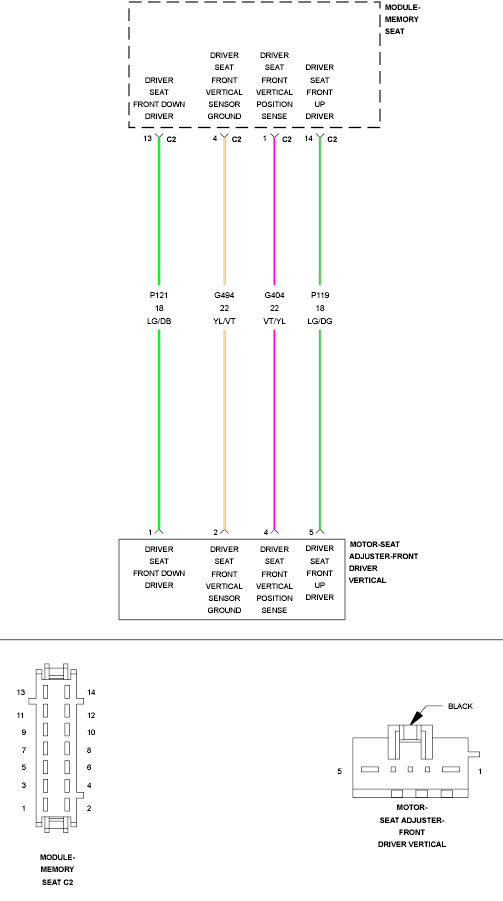

Home >> Jeep >> 2010 >> Liberty Renegade, Part Time >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Memory Seat Module (MSMD) - Electrical Diagnostics >> DTC Troubleshooting >> B1D72-Seat Front Vertical Position Sensor Circuit High >> Circuit Schematic
