RELAY, Auto Shut Down: Installation: Installation

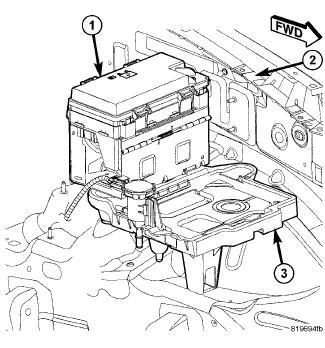

Fig 1: Identifying Power Distribution Center (PDC) & Left Inner Fender

Courtesy of CHRYSLER LLC

1. Refer to TIPM cover for ASD relay location.
2. Install relay to TIPM (1).
3. Install cover to TIPM.
