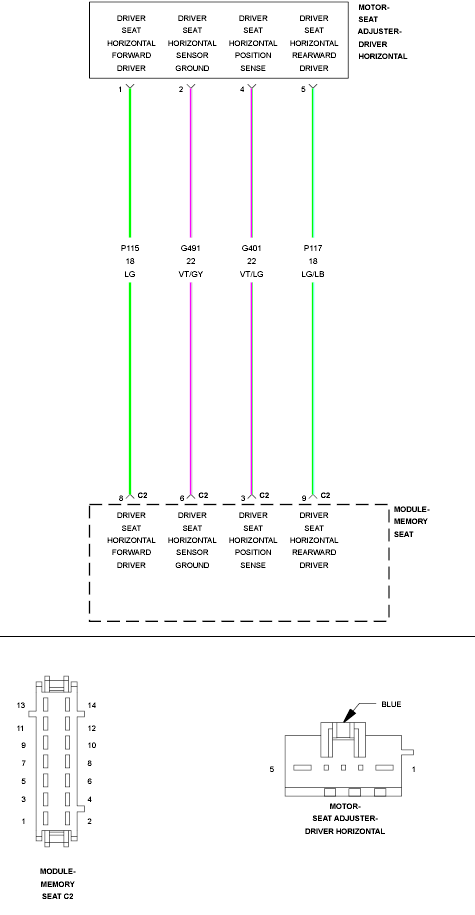

Home >> Jeep >> 2010 >> Liberty Limited, 4WD, Part Time >> Repair and Diagnosis >> Body & Frame >> Seats >> Memory Seat Module (MSMD) - Electrical Diagnostics >> DTC Troubleshooting >> B1D7B-Seat Horizontal Motor Control Circuit Performance >> Circuit Schematic
