MODULE, Fuel Pump: Installation: Installation

NOTE: Whenever the fuel pump module is serviced, the module seal must be replaced.

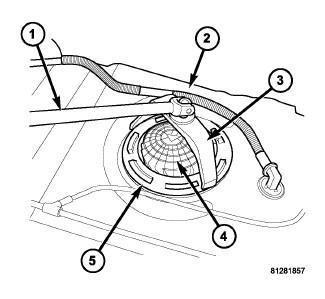

Fig 1: Fuel Tank Module Lock Ring

Courtesy of CHRYSLER LLC

1. Using a new seal, position fuel pump module into opening in fuel tank.
2. Position lock ring (5) over top of fuel pump module.
3. Rotate module until embossed alignment arrow points to center alignment mark. This step must be performed to prevent float from contacting side of fuel tank. Also be sure fuel fitting on top of pump module is pointed to drivers side of vehicle.
4. Install SAE Fuel Pump Lock Ring Wrench 9340 (3) to lock ring (5).
5. Tighten lock ring until all seven notches have engaged.
6. Install fuel tank. See Fuel System/Fuel Delivery/TANK, Fuel - Installation .
