Diesel Engine - With DPF

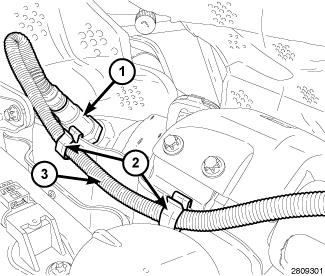

Fig 1: Identifying Maniverter (Exhaust Manifold/Catalytic Converter)

Courtesy of CHRYSLER LLC

Position catalytic converter (1) onto turbo assembly.
Install the lower support bracket bolts.

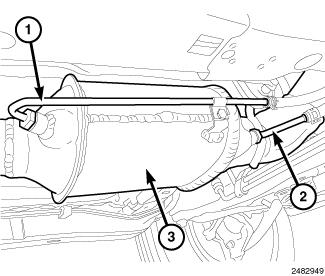

Fig 2: Identifying Catalytic Converter
Courtesy of CHRYSLER LLC
Using a new gasket, position the catalytic converter (3) against the diesel particulate filter (DPF). See Exhaust System/FILTER, Diesel Particulate - Installation .
Working from the front of system; align each component to maintain position and proper clearance with underbody parts.
CAUTION: Band clamps should never be tightened such that the two sides of the clamps are bottomed out against the center hourglass shaped center block. Once this occurs, the clamp has lost clamping force and must be replaced.
Tighten the I-Pipe/muffler assembly band clamps to 55 N.m (40 ft. lbs.).
Install the front suspension crossmember. Refer to Frame and Bumpers/Frame/CROSSMEMBER - Installation .

Fig 3: Identifying O2 Sensor
Courtesy of CHRYSLER LLC
Lower vehicle.
Install catalytic to turbo band clamp.
Install catalytic converter steady rest bracket.
Install temperature and O2 sensors.

Fig 4: AIR CLEANER BOX AND SNORKEL
Courtesy of CHRYSLER LLC
Connect the negative battery cable.
Install the air intake assembly.
Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
Check fluid levels. Add fluid to required level.
Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
