EGR Air Flow Control Valve: Installation: Installation

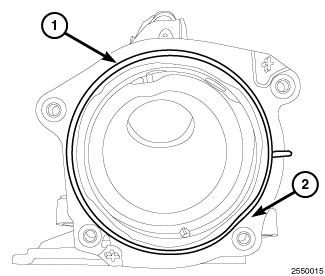

Fig 1: Gasket & Mixing Chamber

Courtesy of CHRYSLER LLC

1. Clean all gasket matting surfaces.
2. Install new gasket (1) on the lower mixing chamber (2).
   Fig 2: Gasket & Inlet Housing

   Courtesy of CHRYSLER LLC
3. Install new gasket (1) onto inlet housing (2).
   Fig 3: EGR Air Flow Control Valve & Bolts

   Courtesy of CHRYSLER LLC
4. Install the EGR air flow control valve (3) to mixing chamber. Tighten bolts (2) to 9 N.m (80 in. lbs.).
5. Install the mixing chamber. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation
6. Install the engine cover.
7. Connect negative battery cable.
