Drain And Fill

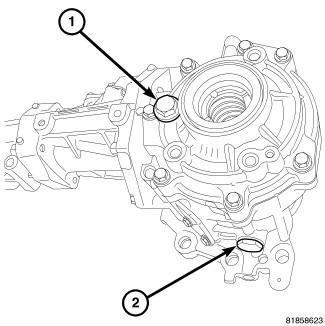

Fig 1: DRAIN AND FILL PLUGS

Courtesy of CHRYSLER LLC

If fluid level is low or fluid change is required fill with MOPAR® MS9020 SAE 80W90 Gear Lube until to bottom of fill plug.
Tighten fill plug (1) to 32 N.m (24 ft.lbs.).
Tighten drain plug (2) to 32 N.m (24 ft.lbs.).
