MODULE, Final Drive Control: Installation: Installation

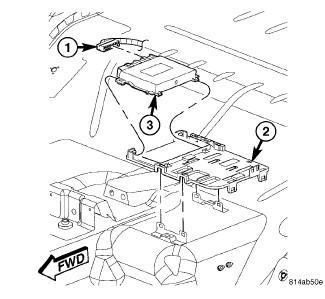

Fig 1: Removing/Installing Final Drive Control Module

Courtesy of CHRYSLER LLC

1. Place the final drive control module (3) in its location on the mounting plate (2) and firmly snap into place.
2. Connect the electrical connector (1).
   Fig 2: Module Electrical Connector

   Courtesy of CHRYSLER LLC

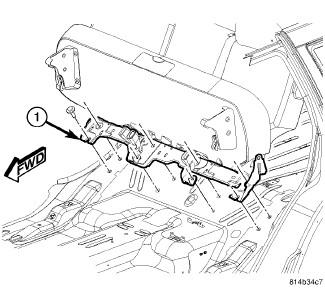

3. Lower the rear seat back down into position.
4. Connect the battery negative cable.
