Connector End Views & Electrical Component Locations: S398

Harness-Family: HVAC_Rear

Color: NA

Gender: FEMALE

Part Number: TBD

Part Description: Not Available

Connector No: S398

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S398 Connector End View
GCWD1006457Courtesy of CHRYSLER

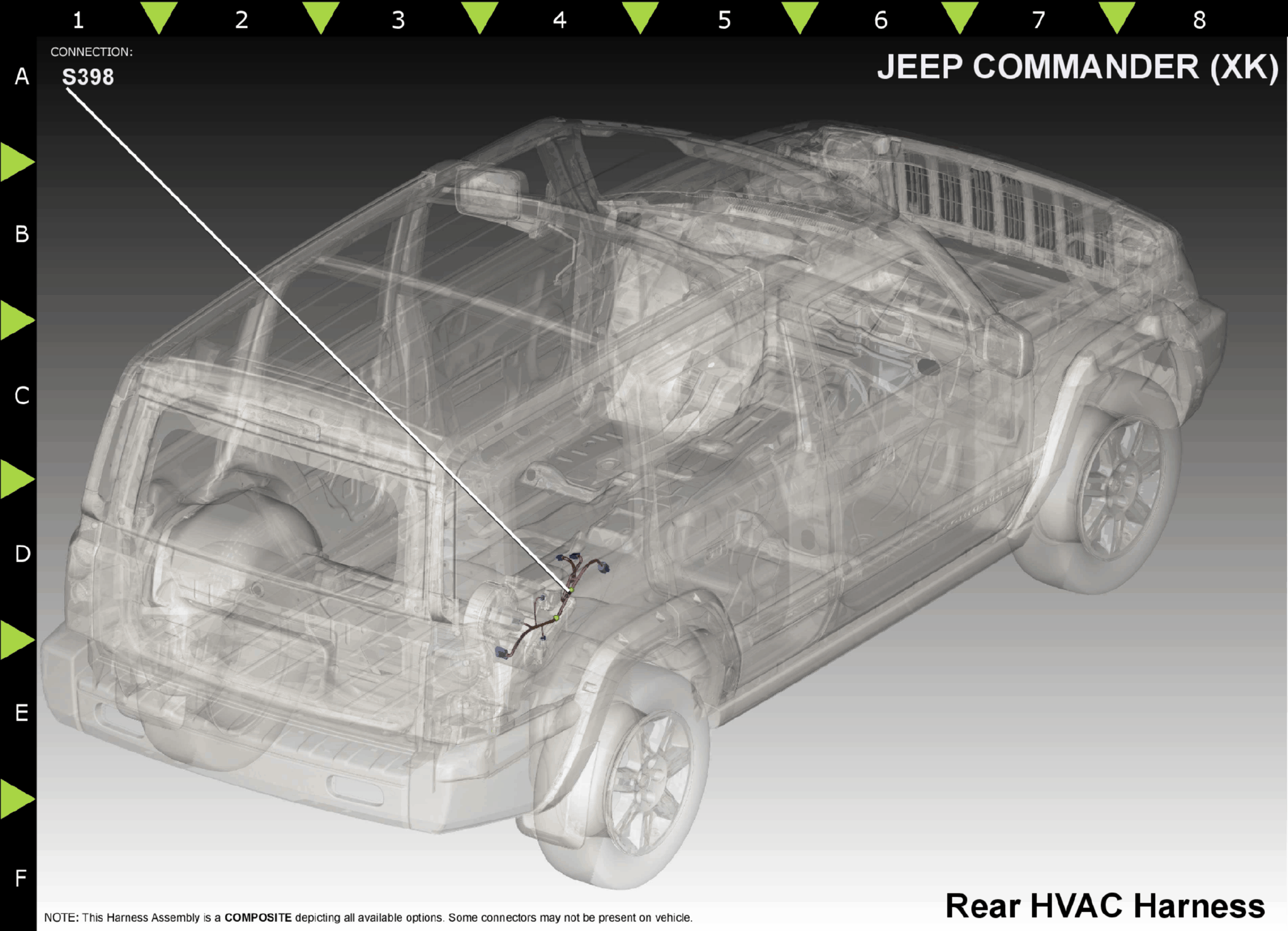

Fig 2: S398 Component Location
GCWD1225284Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F850 LB/PK 20 5 VOLT SUPPLY N/A
2 F850 LB/PK 20 5 VOLT SUPPLY N/A
3 F850 LB/PK 20 5 VOLT SUPPLY N/A
4 F850 LB/PK 20 5 VOLT SUPPLY N/A
(1) Pins not listed are not used for this connector
