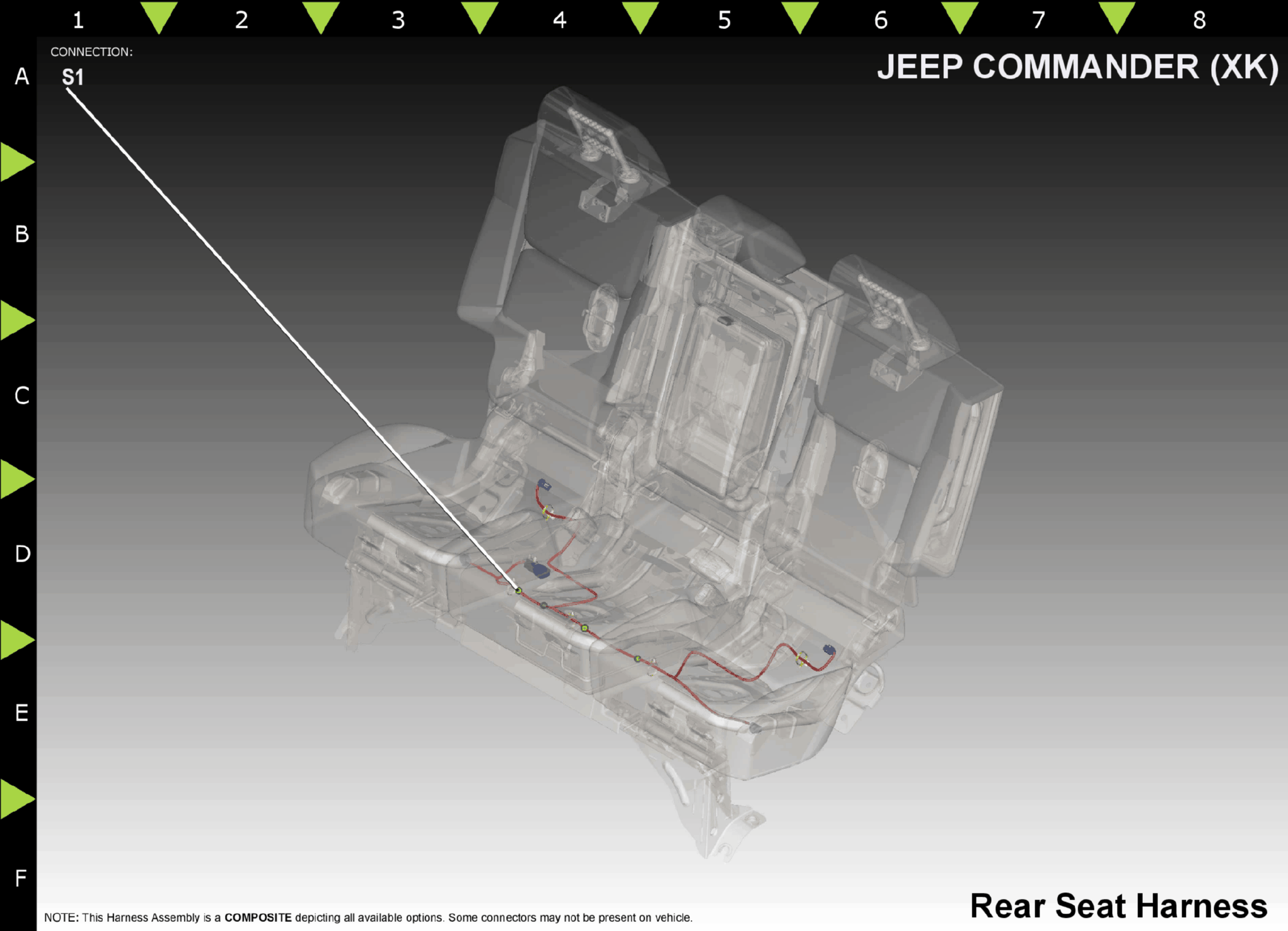

Connector End Views & Electrical Component Locations: S371
Harness-Family: Seat_Rear
Color: NA
Gender: FEMALE
Part Number: TBD
Part Description: Not Available
Connector No: S1
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P178 | LG/GY | 16 | RIGHT REAR SEAT HEATER CONTROL | N/A | ||
| 2 | P178 | LG/GY | 16 | RIGHT REAR SEAT HEATER CONTROL | N/A | ||
| 3 | P178 | LG/GY | 16 | RIGHT REAR SEAT HEATER CONTROL | N/A | ||
|
|||||||
