Connector End Views & Electrical Component Locations: S369

Harness-Family: Overhead

Color: NA

Gender: FEMALE

Part Number: TBD

Part Description: Not Available

Connector No: S369

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S369 Connector End View

Courtesy of CHRYSLER

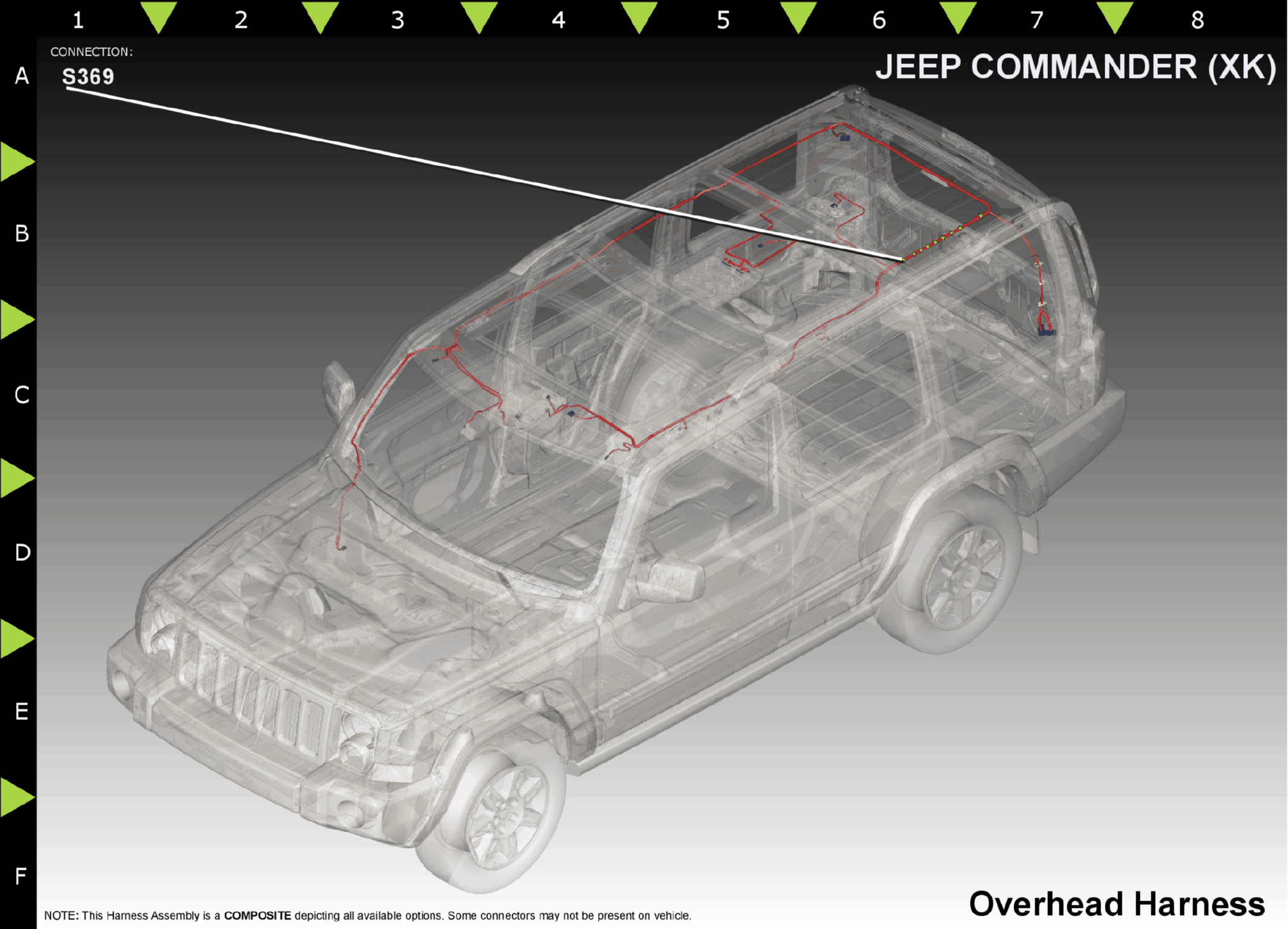

Fig 2: S369 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D55

WT/OR

CAN B (+)

N/A

D55

WT/OR

CAN B (+)

N/A

D55

WT/OR

CAN B (+)

N/A

D55

WT/OR

CAN B (+)

N/A

D55

BR/DB

CAN B (+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
