Connector End Views & Electrical Component Locations: S368

Harness-Family: Overhead

Color: NA

Gender: FEMALE

Part Number: TBD

Part Description: Not Available

Connector No: S368

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S368 Connector End View
GCWD1006457Courtesy of CHRYSLER

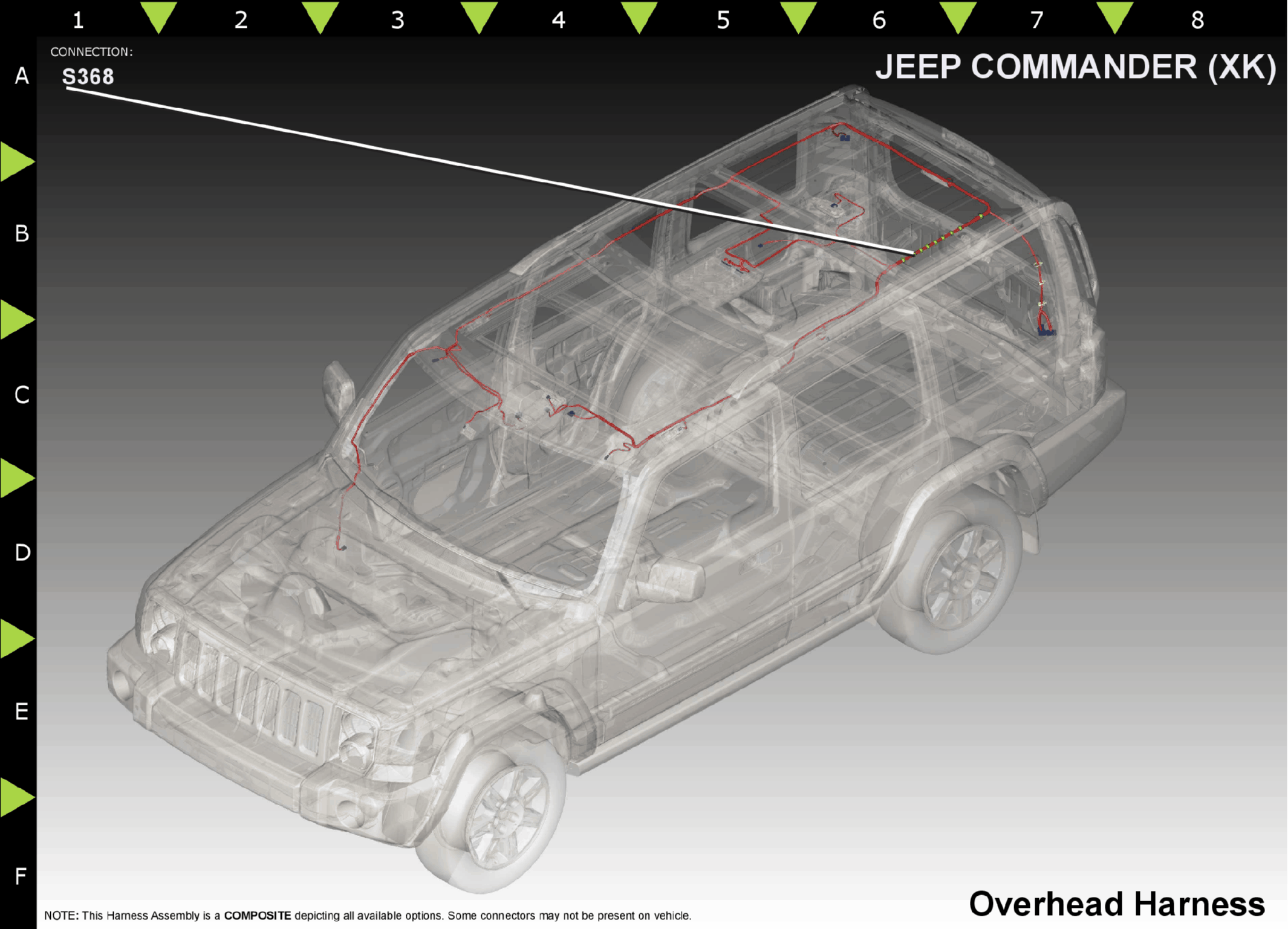

Fig 2: S368 Component Location
GCWD1225264Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D54 WT 20 CAN B (-) N/A
2 D54 WT 20 CAN B (-) N/A
3 D54 WT 20 CAN B (-) N/A
4 D54 WT 20 CAN B (-) N/A
6 D54 BR 20 CAN B (-) N/A
(1) Pins not listed are not used for this connector
