Connector End Views & Electrical Component Locations: S361

Harness-Family: Overhead

Color: NA

Gender: FEMALE

Part Number: TBD

Part Description: Not Available

Connector No: S361

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S361 Connector End View
GCWD1006457Courtesy of CHRYSLER

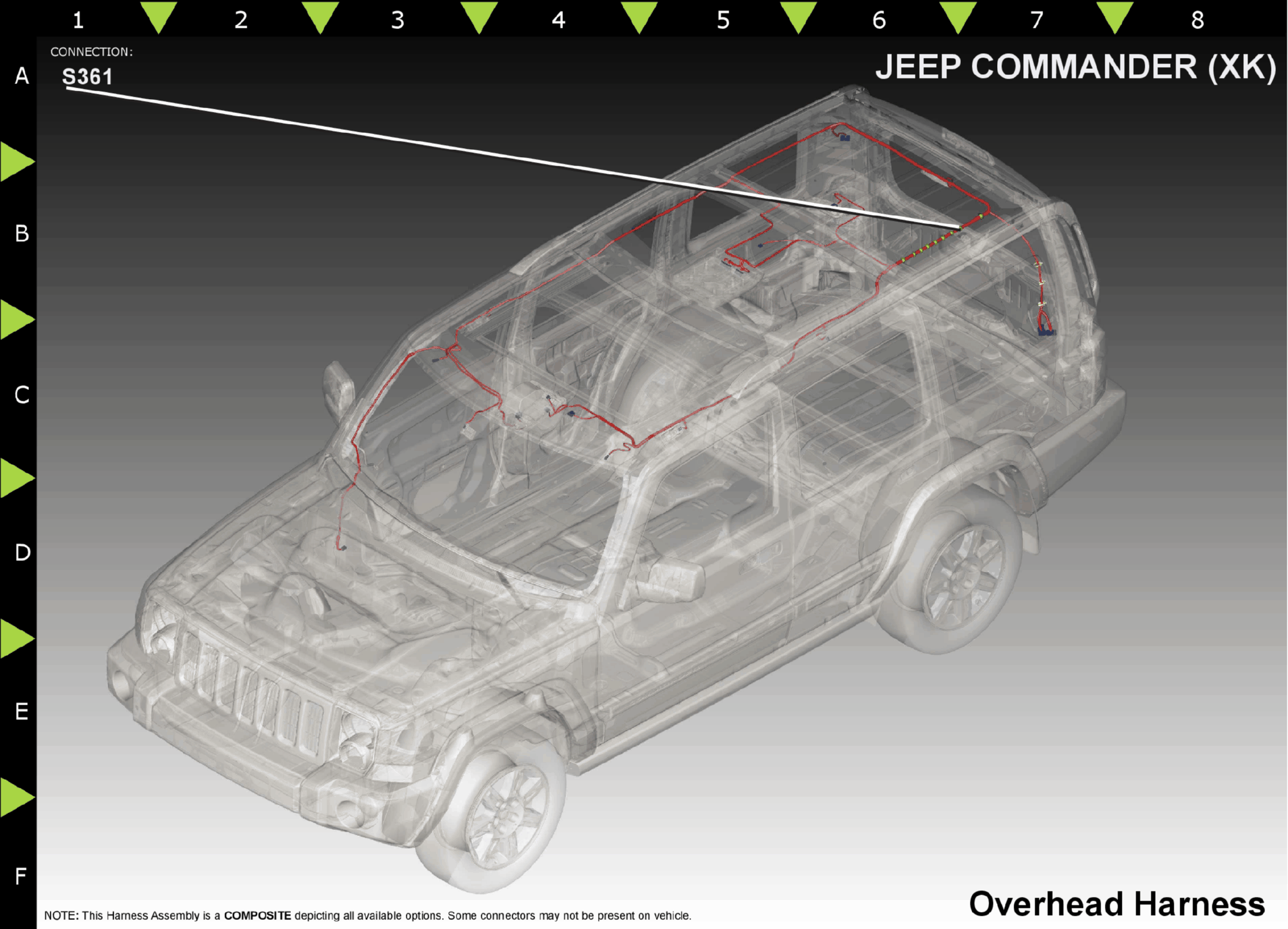

Fig 2: S361 Component Location
GCWD1225261Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 M22 YL/OR 20 COURTESY LAMPS DRIVER N/A
2 M22 YL/OR 20 COURTESY LAMPS DRIVER N/A
3 M22 YL/OR 20 COURTESY LAMPS DRIVER N/A
4 M22 YL/OR 20 COURTESY LAMPS DRIVER N/A
5 M22 YL/OR 20 COURTESY LAMPS DRIVER N/A
6 M22 YL/OR 20 COURTESY LAMPS DRIVER N/A
(1) Pins not listed are not used for this connector
