Connector End Views & Electrical Component Locations: S328
Harness-Family: Body_Under
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available

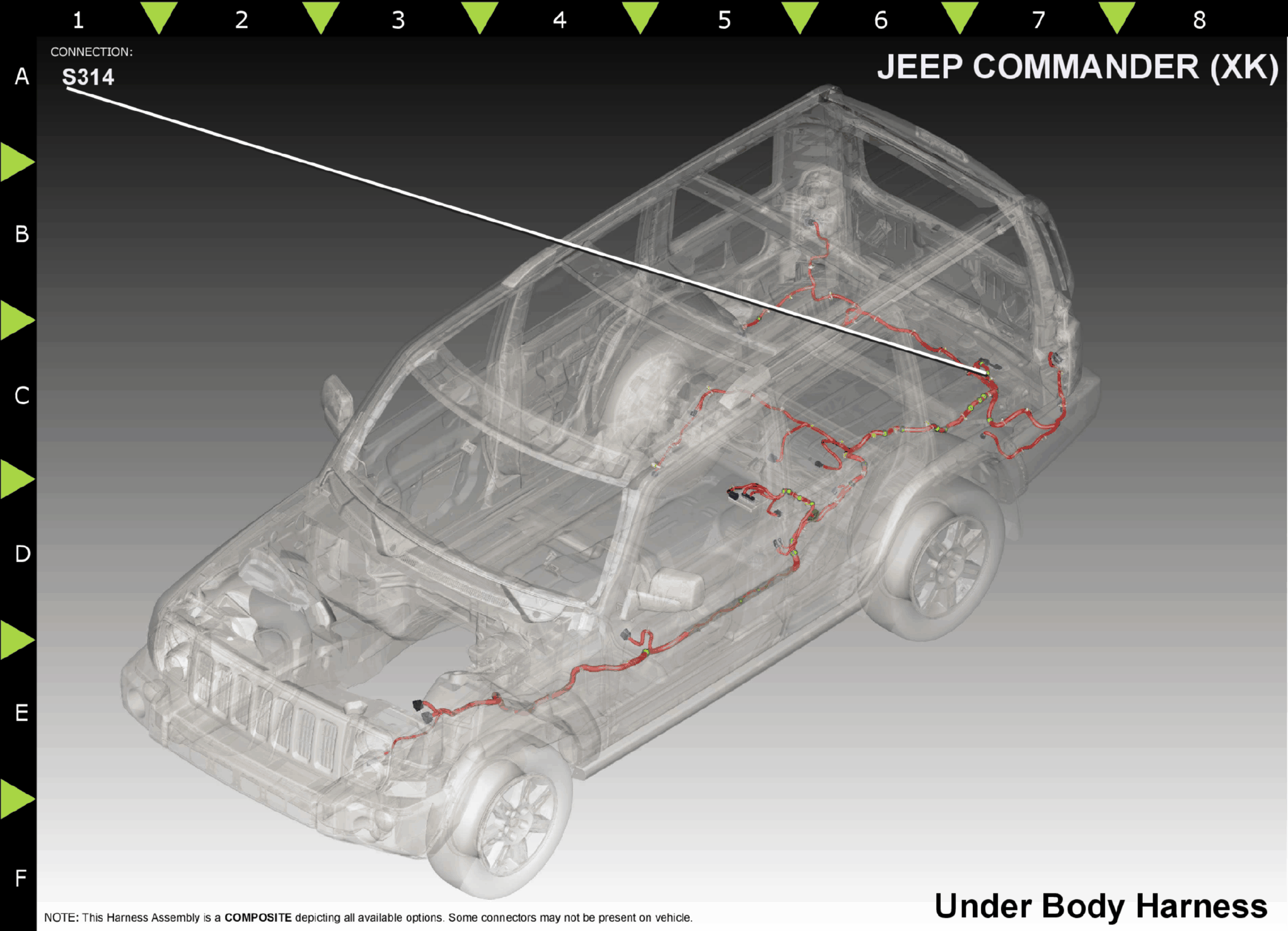

Connector No: S314
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | L614 | WT/DB | 18 | TRAILER TOW RIGHT STOP/TURN SIGNAL | N/A | ||
| 1 | P76 | TN/LB | 20 | MIRROR COMMON DRIVER | N/A | ||
| 2 | L614 | WT/DB | 18 | TRAILER TOW RIGHT STOP/TURN SIGNAL | N/A | ||
| 2 | P76 | TN/LB | 20 | MIRROR COMMON DRIVER | N/A | ||
| 3 | L614 | WT/DB | 18 | TRAILER TOW RIGHT STOP/TURN SIGNAL | N/A | ||
| 3 | P76 | TN/LB | 20 | MIRROR COMMON DRIVER | N/A | ||
| 4 | L614 | WT/DB | 18 | TRAILER TOW RIGHT STOP/TURN SIGNAL | N/A | ||
|
|||||||
