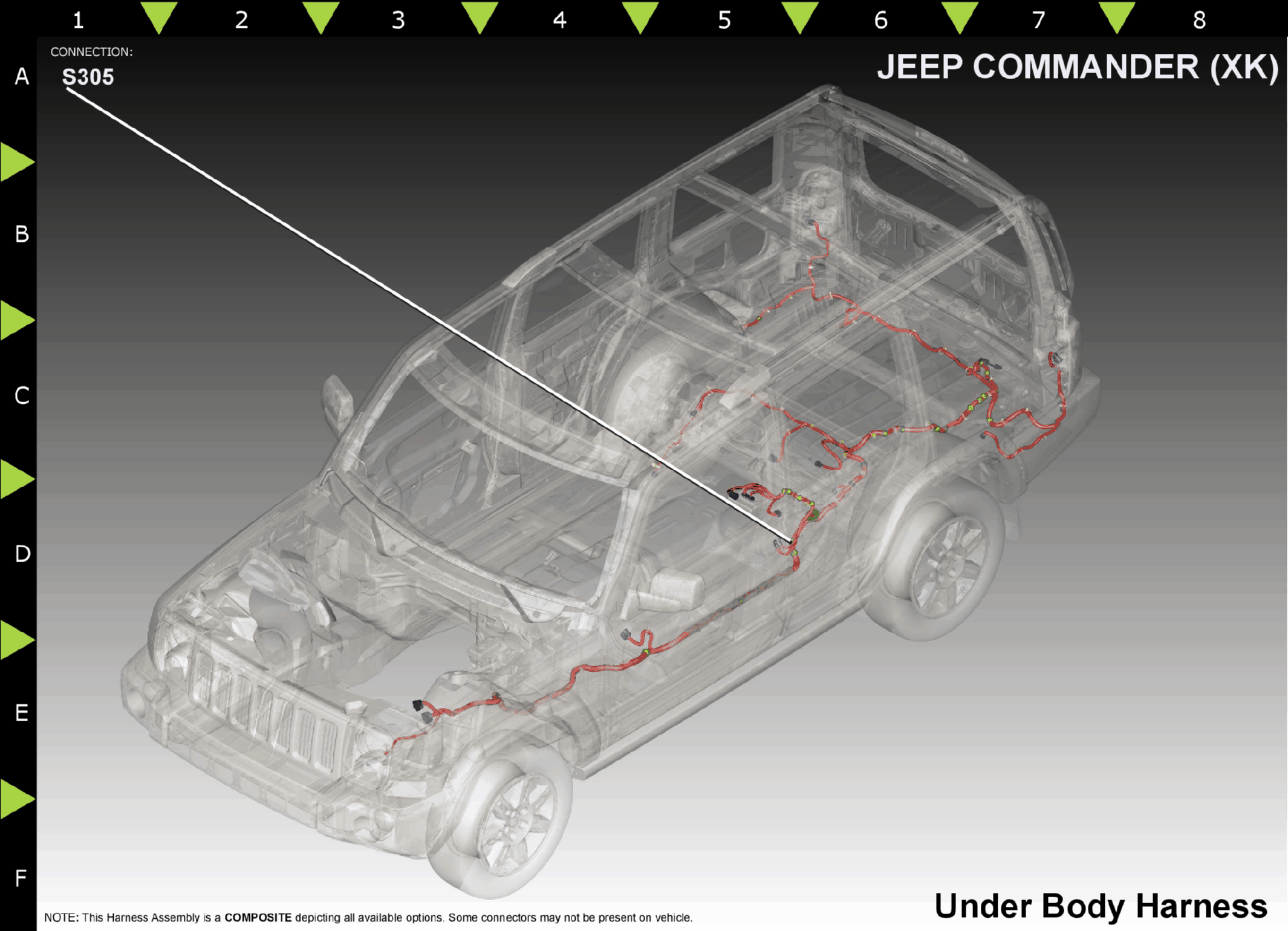

Connector End Views & Electrical Component Locations: S305
Harness-Family: Body_Under
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available
Connector No: S305
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | T301 | DG/YL | 22 | SWITCHED BATTERY SOLENOID SUPPLY | N/A | ||
| 2 | T301 | DG/YL | 22 | SWITCHED BATTERY SOLENOID SUPPLY | N/A | ||
| 3 | T301 | DG/YL | 18 | SWITCHED BATTERY SOLENOID SUPPLY | N/A | ||
| 4 | T301 | DG/YL | 22 | SWITCHED BATTERY SOLENOID SUPPLY | N/A | ||
|
|||||||
