Connector End Views & Electrical Component Locations: S300

Harness-Family: Body_Under

Color: NA

Gender: FEMALE

Part Number: NA

Part Description: Not Available

Connector No: S303

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: S300 Connector End View

Courtesy of CHRYSLER

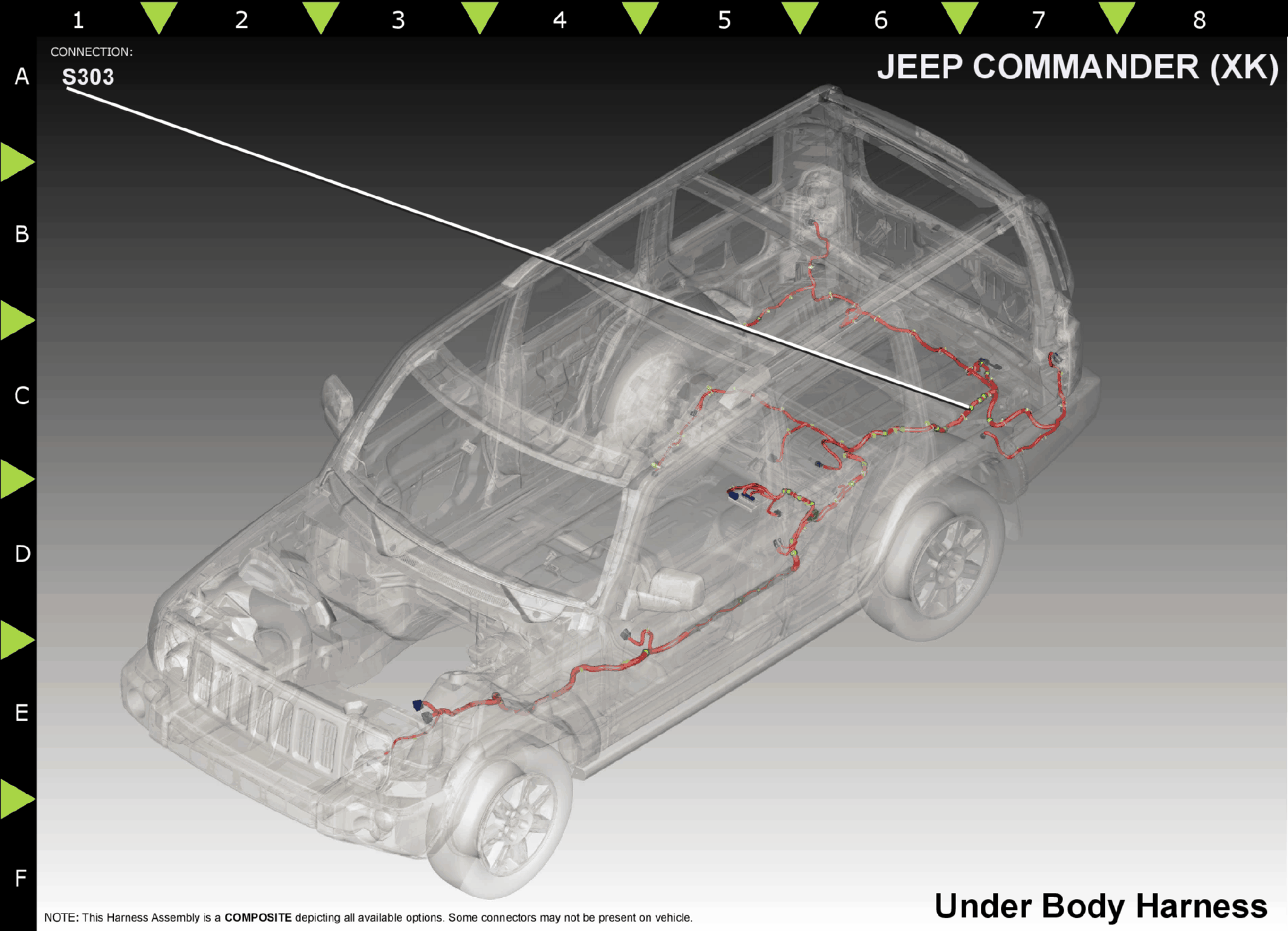

Fig 2: S300 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L50

WT/TN

BRAKE LAMP SWITCH OUTPUT

N/A

L50

WT/TN

BRAKE LAMP SWITCH OUTPUT

N/A

L50

WT/TN

BRAKE LAMP SWITCH OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
