Connector End Views & Electrical Component Locations: S133

Harness-Family: HDLP_Dash

Color: NA

Gender: FEMALE

Part Number: NA

Part Description: Not Available

Connector No: S1339

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: S133 Connector End View

Courtesy of CHRYSLER

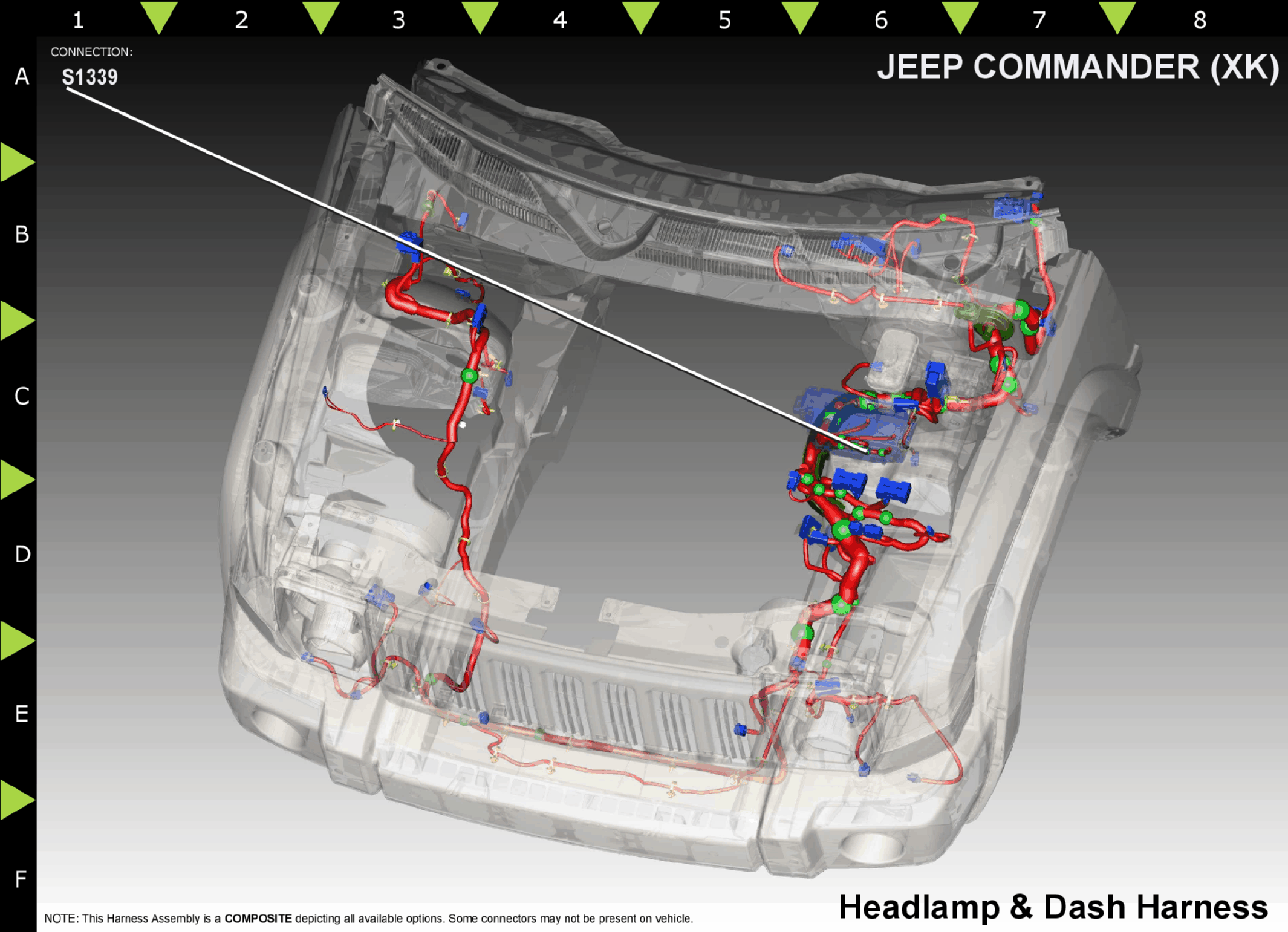

Fig 2: S133 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L45

WT/OR

LOW BEAM RELAY CONTROL

N/A

L45

WT/OR

LOW BEAM RELAY CONTROL

N/A

L45

WT/OR

LOW BEAM RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
