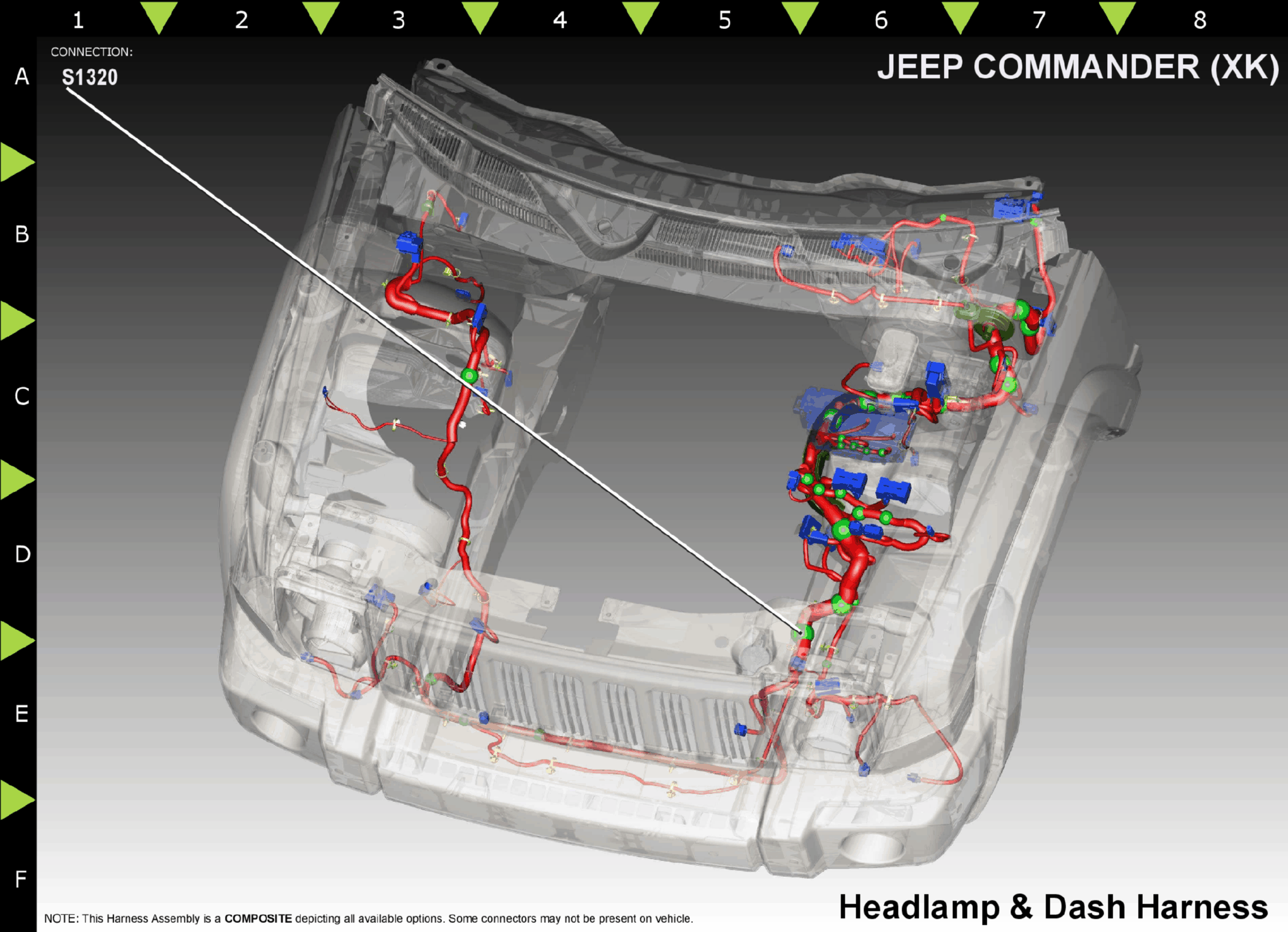

Connector End Views & Electrical Component Locations: S120
Harness-Family: HDLP_Dash
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available
Connector No: S1320
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | D508 | WT/GY | 20 | LIN TIRE PRESSURE MONITOR LAN | N/A | ||
| 2 | D508 | WT/GY | 20 | LIN TIRE PRESSURE MONITOR LAN | N/A | ||
| 3 | D508 | WT/GY | 20 | LIN TIRE PRESSURE MONITOR LAN | N/A | ||
| 4 | D508 | WT/GY | 20 | LIN TIRE PRESSURE MONITOR LAN | N/A | ||
|
|||||||
