3.0L - Diesel
Courtesy of CHRYSLER LLC
- Position generator to engine.

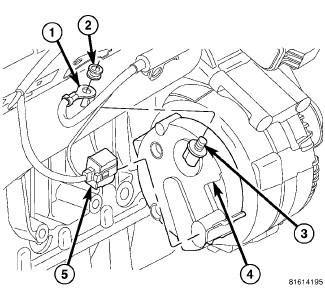

- Install battery B+ cable eyelet (1) and nut (2) to generator mounting stud (3).
- Snap plastic insulator cap to B+ output terminal mounting stud.
Courtesy of CHRYSLER LLC

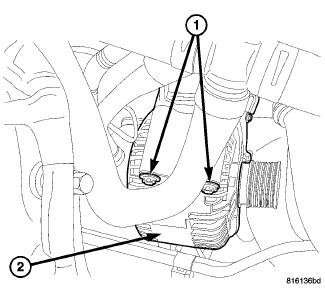

- Install two upper mounting bolts (1) finger tight only.
- Install throttle body (four bolts). Refer to Throttle Body-REMOVAL
.
- Install throttle body-to-cylinder head support bracket (four bolts).
- Raise vehicle.
Courtesy of CHRYSLER LLC

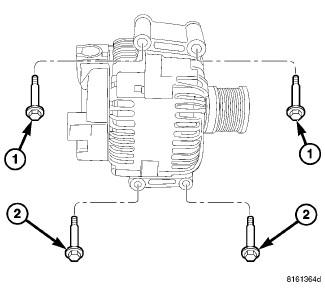

- Install two lower mounting bolts (2) and tighten.
Courtesy of CHRYSLER LLC
- Connect field wire connector (5) to generator (4).
- If equipped, install skid plate below generator.
- Lower vehicle.
Courtesy of CHRYSLER LLC
- Tighten two generator upper mounting bolts (1).
- Install generator drive belt. Refer to Accessory Drive- Belt-Serpentine-INSTALLATION
for procedure.
- Install air filter housing (one bolt).
- Install air filter element and air filter housing cover.
- Install coolant reservoir tank mounting bolt and coolant tank.
- Install plastic dress-up cover at top of engine.
- Connect negative battery cable to battery.
