MODULE, Glow Plug: Removal: Removal

  1. Disconnect the negative battery cable.

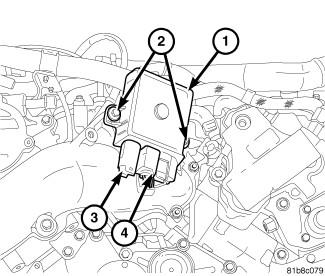

    Fig 1: Sprinter Glow Plug Module
    GC0079980Courtesy of CHRYSLER LLC
  2. Disconnect the battery positive harness connector (3) from the glow plug module.
  3. Disconnect the glow plug harness connector (4).
  4. Remove the two glow plug module bolts (2).
  5. Remove the glow plug module (1).
