MODULE, Door: Installation: Installation

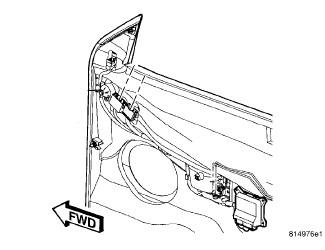

Fig 1: Identifying Memory Mirror Module

Courtesy of CHRYSLER LLC

1. Position module on door trim panel and install fasteners.
   Fig 2: Electrical Connectors

   Courtesy of CHRYSLER LLC
2. If applicable, first connect the black 12-way electrical connector (3), then connect the brown 20-way electrical connector (2). The connect the black 10-way electrical connector to the module (1).
3. Install the door trim panel. Refer to Body/Door - Front/PANEL, Door Trim - Installation .
4. Connect the battery negative cable.
