3.0L Diesel

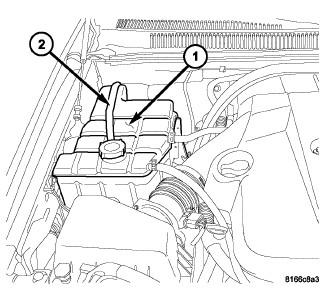

Fig 1: 3.0L Coolant Reservoir/Overflow Tank
GC0118263Courtesy of CHRYSLER LLC
1 - COOLANT RESERVOIR/OVERFLOW TANK
2 - COOLANT OVERFLOW HOSE
-
  1. Position coolant recovery container (1).
  2. Install mounting nuts. Tighten to 10 N.m (89 in. lbs.).
  3. Install coolant recovery tube (2).
  4. Fill cooling system. See Cooling - Standard Procedure .
  5. Install coolant recovery container pressure cap.
