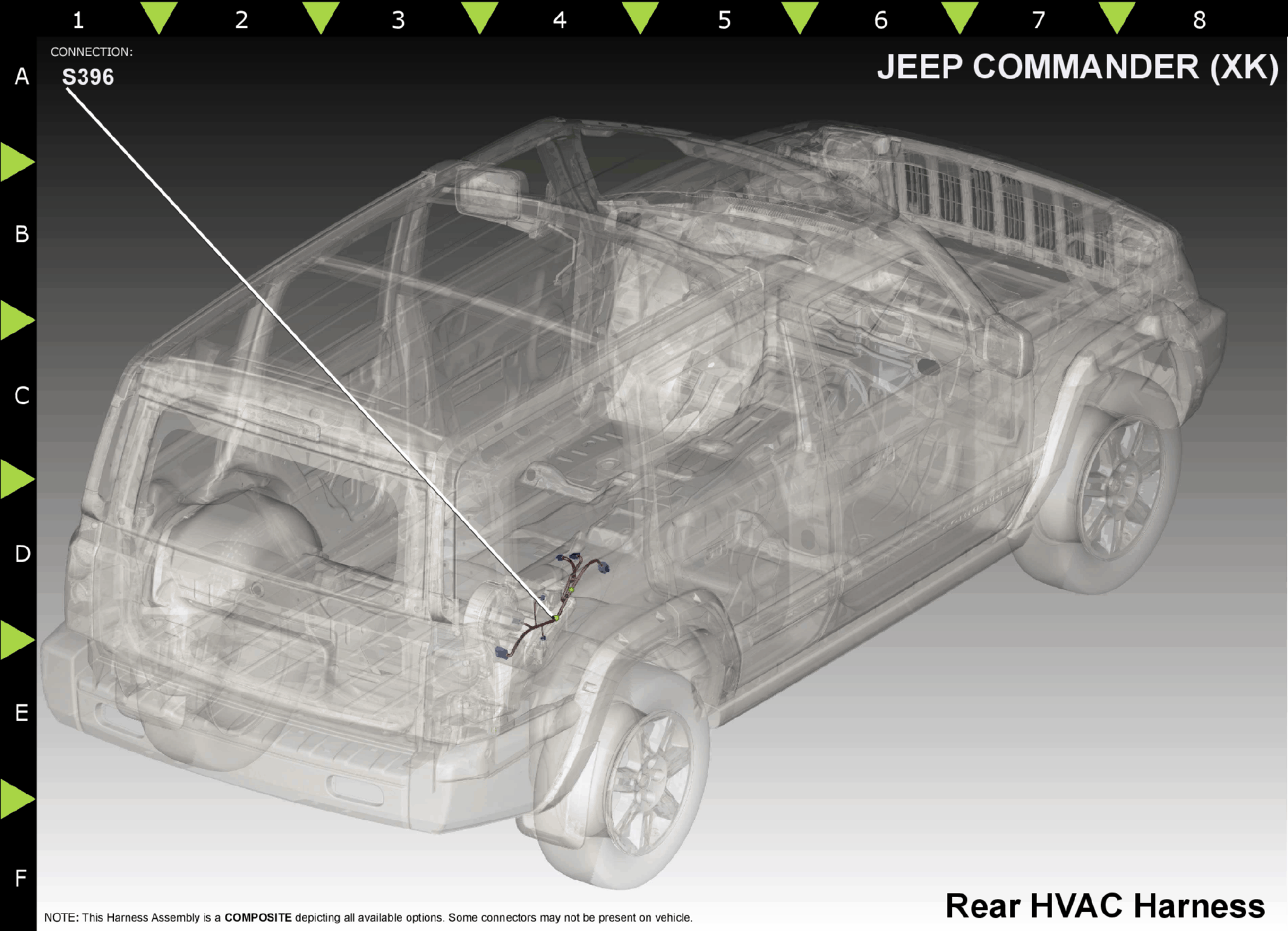

Connector End Views & Electrical Component Locations: S396
Harness-Family: HVAC_Rear
Color: NA
Gender: FEMALE
Part Number: TBD
Part Description: Not Available
Connector No: S396
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z908 | BK | 20 | GROUND | N/A | ||
| 2 | Z908 | BK | 20 | GROUND | N/A | ||
| 3 | Z908 | BK | 20 | GROUND | N/A | ||
| 4 | Z908 | BK | 20 | GROUND | N/A | ||
|
|||||||
