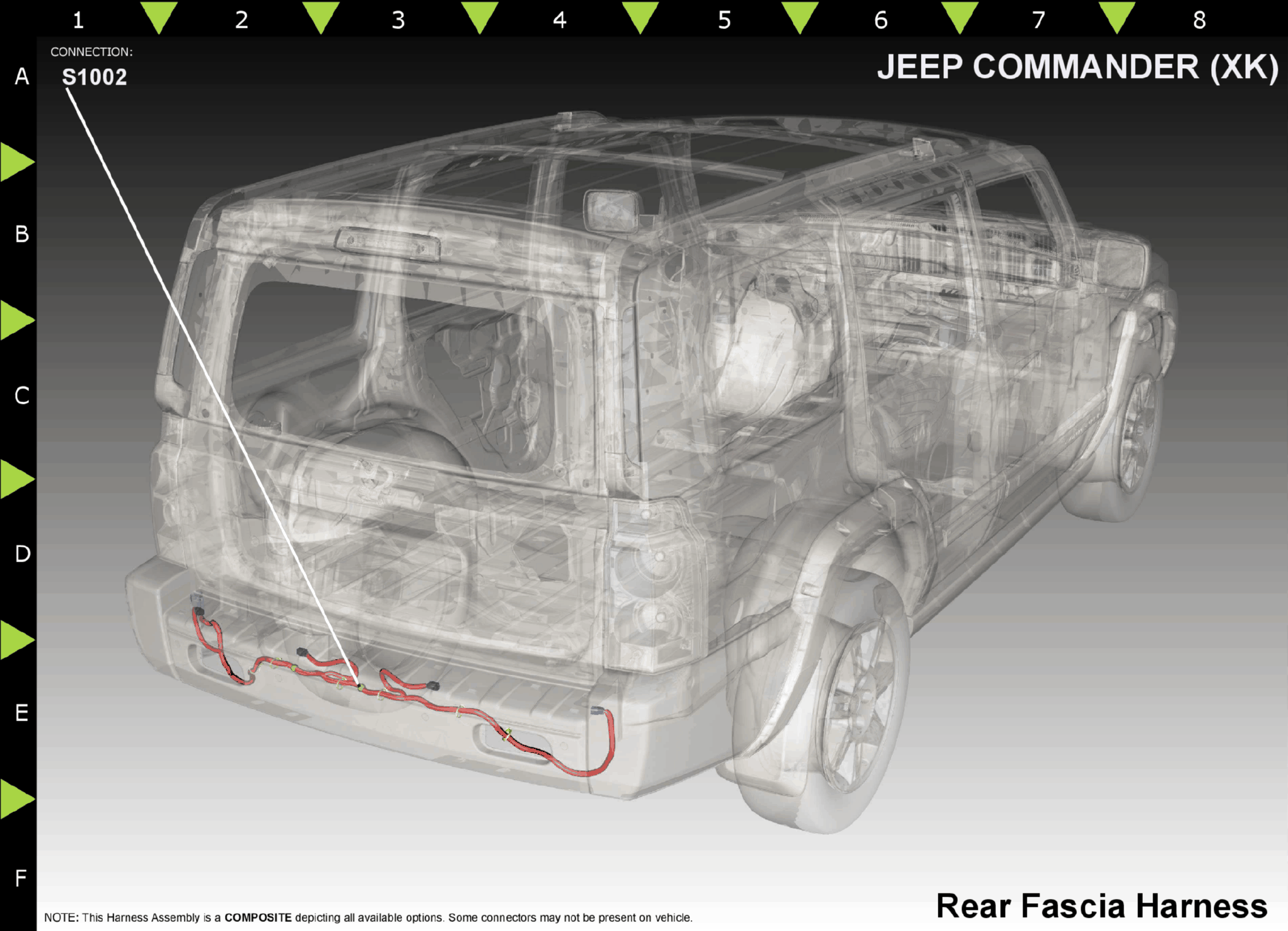

Connector End Views & Electrical Component Locations: S356
Harness-Family: Fascia_Rear
Color: NA
Gender: FEMALE
Part Number: NA
Part Description: Not Available
Connector No: S1002
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | X700 | GY/OR | 20 | REAR PARK ASSIST SENSOR SUPPLY | N/A | ||
| 2 | X700 | GY/OR | 20 | REAR PARK ASSIST SENSOR SUPPLY | N/A | ||
| 3 | X700 | GY/OR | 20 | REAR PARK ASSIST SENSOR SUPPLY | N/A | ||
| 4 | X700 | GY/OR | 20 | REAR PARK ASSIST SENSOR SUPPLY | N/A | ||
| 5 | X700 | GY/OR | 20 | REAR PARK ASSIST SENSOR SUPPLY | N/A | ||
|
|||||||
